| Warranty: | 1Years |
|---|---|
| Model Number: | DZ-130 |
| Brand Name: | WONSUN |
| Place of Origin: | China (Mainland) |
| Type: | Parking barrier |
| Name:: | Parking Gates Prices Parking Barrier Remote Control |
| Brand Name: | Wonsun |
| Material: | 1.5mm Cold Roll Plate Or Galvanized Plate |
| Color: | White, Blue, Yellow, Red, Orange, Grey, Customized |
| Size: | 1000*352*302mm |
| Operation Time: | 1.8s, 3s, 6s, Optional |
| Arm Type: | Straight Arm, Folding Arm, Fence Arm, Max 6m |
| Rating Voltage: | AC 220/110V 50/60Hz |
| Motor Power: | Highway, Parking Lot, Hotel, Community, Factory, Bus Station |
| Usage: | Highway, Parking Lot, Hotel, Community, Factory, Bus Station |
Quick Details
Specifications

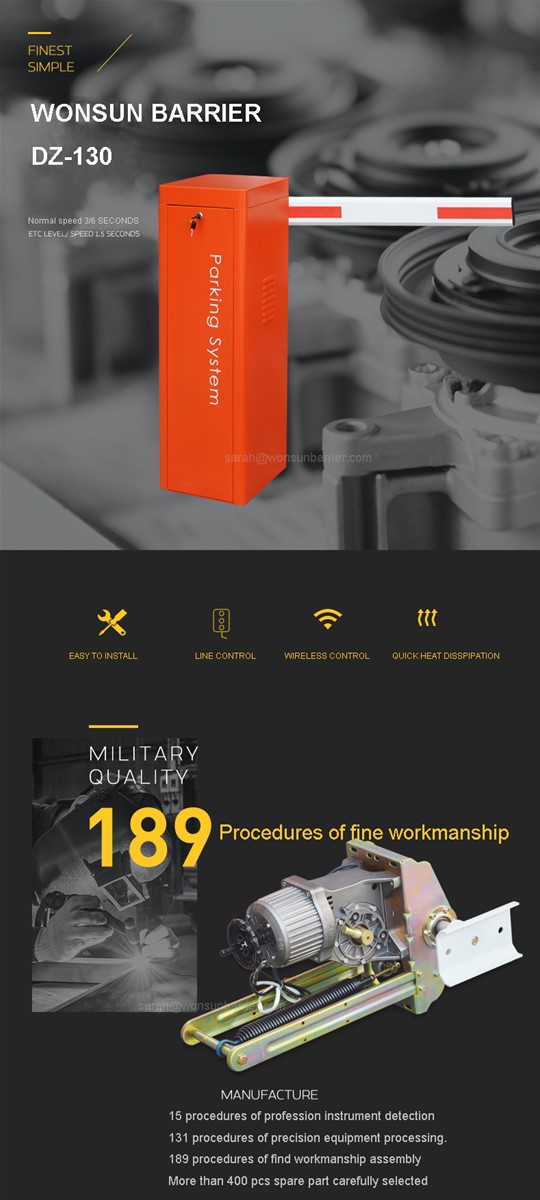

Parking Gates Prices Parking Barrier Remote Control

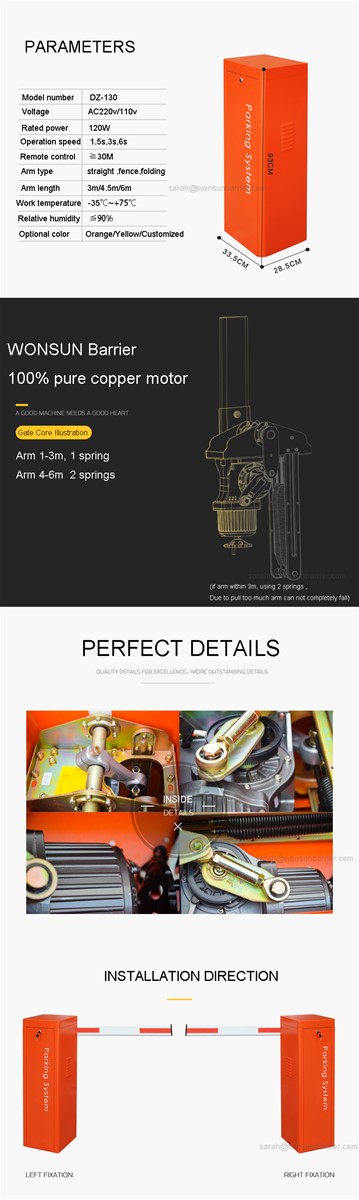

| Model | DZ-130 |
| Size | 930*335*385mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 1.5s,3s,6s |
| Working Temperature | -35℃~+75℃ |
| Material | Galvanized plate or Cold roll plate, 1.5mm thickness sheet 3 years without rust, shedding and fading |
| Spring and Bearing | Heat Treatment: more durable, more than 2 million times through operation testing |
Remote Control Distance |
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm, with seven layers carton case
Inside with air bubble film for protection |
| Delivery | by Sea: big order(more than 100 sets), Cheap, suggested
by Air: small order(1-15 sets), quick and cheap, suggested |
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed
Requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. the surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Communication with customers
Q1. Motor works but there is no reaction on the arm.
A. Please check whether the clutch device is locked or not.
Q2. There is too much vibrant when the boom is rising or falling.
A. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
B. Please check whether the balance spring is overused and distorted. If yes, change a new one.
C. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin
bottom adjust nut.
Q3. the boom could not rise up or fall down to the end.
A. When change a long boom to a short one, please readjust it.
B. the sensor does not plug well, please chek it.
C. the " Speed adjust switch" is wrong adjust, please readjust it.
Q4. the distance of the remote control decreases.
A. Check whether the charge capacity of the remote controller is enough or not.
Q5. There is no reaction when pressing the remote controller buttons.
A, Please check whether the power is supplied to the barrier gate or not.
B. Please check whether the fuse is burnt out or not.
C. Please check whether the code both in the remote controller and the control board are accordant
or not.
Q6 There is no reaction on the motor when the user changes a control board.
A. Please check the capacitance is correctly fixed or not.
B. Please check the sensor is right inserted or not.
