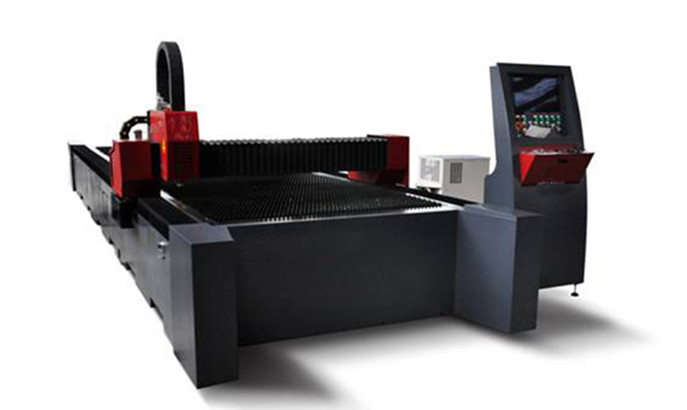

Main Technical Parameters of Fiber I

Machine type	Fiber I
Effective cutting range	1300*2500mm	1500*3000mm
Machine size	1860*3400*1470mm	2060*3600*1600mm
Input voltage	AC380V, 3 phase
Input frequency	50/60Hz
Input power	7.5Kw
Cutting speed	0-10000mm/min
Running speed	0-30000mm/min
Cutting thickness	0.2-6mm
Drive mode	Japanese Yaskawa Servo
Reducer	Japanese Shimpo reducer
Position accuracy	≤±0.04mm
Repeatability	≤±0.03mm
Continually running hours	24H
Laser type	Fiber laser 500W
Cooling system	Water cooling system
Cutting material	Carbon steel, Stainless steel, Copper alloy, etc.

Company Introduction

Beijing TopTech Technology Co., Ltd. Was Founded in Beijing, the capital and main transportation city in China.

with more than 10 years experience in Welding and cutting industry, we had R&D our advanced welding and cutting Equipment.

Mature teams, included sales team, Marketing team, production team and after-service team, supply professional Service for customers.

Strictly follow ISO 9001:2000 world quality Management system.

Beijing TopTech Technology Co., Ltd. Products include plasma cutting machine, laser cutting machine, CNC cutting Machine, flame cutting machine, portable cutting machine, gantry cutting Machine, laser carving machine, high definition plasmaCutting machine, bevel Cutting machine,Plasma cutter.
