| Weight: | 2000KG |
|---|---|
| Rated Power: | 2KW |
| Voltage: | AC 240V |
| Model Number: | ARTTEC III |
| Brand Name: | TopTech |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Effective cutting area: | 1500*3000mm, other special requires |
| CNC control system: | German Eckelmann |
| Working mode: | Plasma cutting, Operational: drilling, gas marking |
| Lengthways transmission mode: | Eckelmann motors, double-drive |
| Reducer: | Japanese Shimpo reducer |
| Automatic THC for plasma: | Eckelmann HD plasma THC |
Quick Details
Specifications

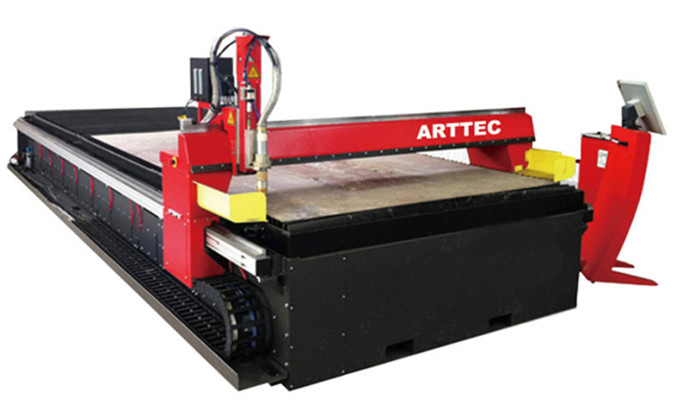

ARTTEC III
Table CNC cutting machine series
ARTTEC III table CNC cutting machine is for High Definition plasma cutting requires.
Equipt with Germany Eckelmann controller and AV THC system.
the compact and complete solution
the ARTTEC III plasma cutting machine is a recent development of compact TopTech cutting machines with high precision plasma, advanced ECKELMANN CNC control and ECKELMANN INNER THC torch height control. the machine is designed as an all-in-one solution for automated cutting processes, for supplier and end user.
- for all applications where high cutting speeds,accuracy and positioning speed are important
- Solid design, compact and equipped with the latest cutting technology
- 'Plug & cut'- installation time is reduced to a minimum
- Precision Plasma material thicknesses up to 30mm
- User friendly, multiple language ECKELMANN CNC control.
High accuracy
the ARTTEC III is a flatbed plasma cutting machine with high positioning speeds (up to 18000 mm / min) with a plasma system of your choice. the torch height is adjusted and monitored through arc voltage. High accuracies are achieved by the double drive with backlash-free AC motors with precision racks. An optional dust filter System Can be connected to the cutting table.
Because of the integrated cutting table, the installation time of ARTTEC III is reduced to an absolute minimum.
Easy operation with the simple ECKELMANN CNC controller!
Works with Windows Touch technology and has a 15" touchscreen. the machine operator doesn't have to be familiar with the operation of a computer, but can easily make selections on the screen, a keyboard is not needed. Images can easily be magnified on the screen rotated, flipped, etc. Pages browsing and drawings are also standard.
the hardware is specially designed for production environments.
Modular and flexible software to support the user in all functions.
Main Technical Parameters of ARTTEC series
| Machine Type | ARTTEC I | ARTTEC II | ARTTEC III |
| WORK with PLASMA TYPE | NORMAL AIR PLASMA POWER SOURCES | HIGH POWER PLASMA POWER SOURCES | HIGH DEFINITION PLASMA POWER SOURCES |
| Input Voltage | AC 240V | ||
| Input Power | 2KW | ||
| Input frequency | 50/60HZ | ||
| Effective cutting area | 1500*3000mm, other special requires | ||
| CNC control system | RATE Series 2100 | RATE Series 2300 | German Eckelmann |
| Controller position | Seperated from machine body | ||
| Working mode | Plasma cutting, Operational: drilling, gas marking | ||
| Drive mode | Step drive mode | Servo drive mode | Panasonic servo drive mode |
| Lengthways transmission mode | Step motors, double-drive | Panasonic Servo Motors, double-drive | Eckelmann motors, double-drive |
| Transmission mode | Rack, gear, single axis core rail | Rack, gear, double axis cores rail | Rack, gear, straight line rail |
| Reducer | None | Taiwan reducer | Japanese Shimpo reducer |
| Plasma torch holder | Depend on customer plasma power source requires | ||
| Cutting thickness | 0.3-25mm | Depend on plasma power source | |
| Max running speed | 9,000mm/min. | 10,000mm/min. | 18,000mm/min. |
| Max cutting speed | 9,000mm/min. | 10,000mm/min. | 18,000mm/min. |
| Automatic THC for plasma | Normal air plasma THC | Special HP plasma THC | Eckelmann HD plasma THC |
| Z axis movement range | 40mm | 100mm | 100mm, with repeatable accuracy 0.02mm |
| Positional accuracy | ≤±0.02mm/ whole machine | ≤±0.01mm/ whole machine | |
| Repositional accuracy | ≤±0.02mm/ whole machine | ≤±0.01mm/ whole machine | |
| Cutting Material | Carbon steel, Stainless steel, etc. | ||
| Nesting software | FASTCAM, other nesting software as requires | ||
| Machine weight | 1700KG | 2000KG | |
