| Weight: | 2KW |
|---|---|
| Rated Power: | 2KW |
| Voltage: | AC 240V |
| Model Number: | ARTTEC I |
| Brand Name: | TopTech |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Input frequency: | 50/60HZ |
| Effective cutting area: | 1500*3000mm, other special requires |
| CNC control system: | RATE Series 2100 |
| Working mode: | Plasma cutting, Operational: drilling, gas marking |
| Drive mode: | Step drive mode |
| Lengthways transmission mode: | Step motors, double-drive |
Quick Details
Specifications

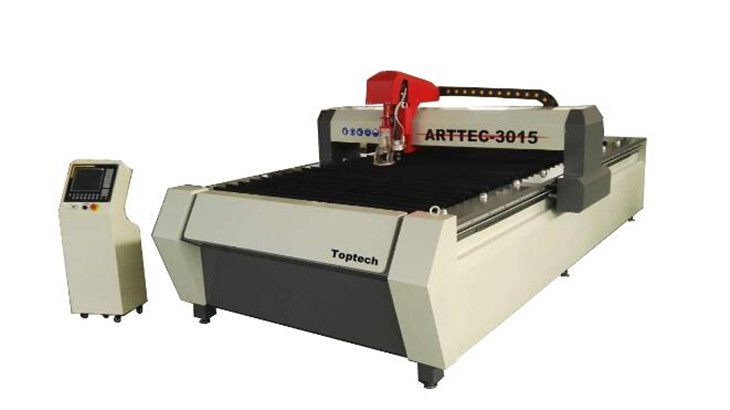

ARTTEC I
Table CNC cutting machine series
ARTTEC table CNC cutting machine is for normal air plasma cutting requires.
on one machine, not only can realize plasma cutting function, but also drilling and gas marking functions.
Main Technical Parameters of ARTTEC series
Table CNC cutting machine series
ARTTEC table CNC cutting machine is for normal air plasma cutting requires.
on one machine, not only can realize plasma cutting function, but also drilling and gas marking functions.
Main Technical Parameters of ARTTEC series
| Machine Type | ARTTEC I | ARTTEC II | ARTTEC III |
| WORK with PLASMA TYPE | NORMAL AIR PLASMA POWER SOURCES | HIGH POWER PLASMA POWER SOURCES | HIGH DEFINITION PLASMA POWER SOURCES |
| Input Voltage | AC 240V | ||
| Input Power | 2KW | ||
| Input frequency | 50/60HZ | ||
| Effective cutting area | 1500*3000mm, other special requires | ||
| CNC control system | RATE Series 2100 | RATE Series 2300 | German Eckelmann |
| Controller position | Seperated from machine body | ||
| Working mode | Plasma cutting, Operational: drilling, gas marking | ||
| Drive mode | Step drive mode | Servo drive mode | Panasonic servo drive mode |
| Lengthways transmission mode | Step motors, double-drive | Panasonic Servo Motors, double-drive | Eckelmann motors, double-drive |
| Transmission mode | Rack, gear, single axis core rail | Rack, gear, double axis cores rail | Rack, gear, straight line rail |
| Reducer | None | Taiwan reducer | Japanese Shimpo reducer |
| Plasma torch holder | Depend on customer plasma power source requires | ||
| Cutting thickness | 0.3-25mm | Depend on plasma power source | |
| Max running speed | 9,000mm/min. | 10,000mm/min. | 18,000mm/min. |
| Max cutting speed | 9,000mm/min. | 10,000mm/min. | 18,000mm/min. |
| Automatic THC for plasma | Normal air plasma THC | Special HP plasma THC | Eckelmann HD plasma THC |
| Z axis movement range | 40mm | 100mm | 100mm, with repeatable accuracy 0.02mm |
| Positional accuracy | ≤±0.02mm/ whole machine | ≤±0.01mm/ whole machine | |
| Repositional accuracy | ≤±0.02mm/ whole machine | ≤±0.01mm/ whole machine | |
| Cutting Material | Carbon steel, Stainless steel, etc. | ||
| Nesting software | FASTCAM, other nesting software as requires | ||
| Machine weight | 1700KG | 2000KG | |
