N type:

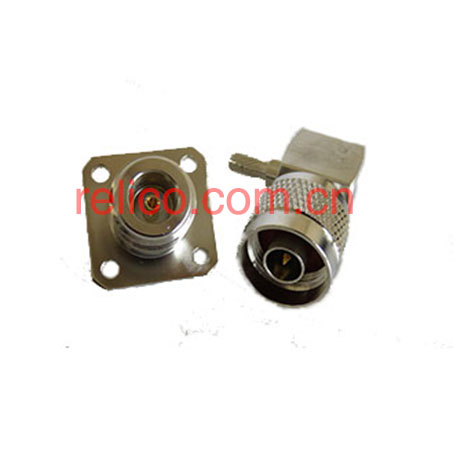

N series connectors are one kind of medium and large power connectors with Thread connection mechanism made according to MIL-C-39012,IEC 169-16 and CECC22210,It has such characteristics as good vibration-resistance, high reliability and good mechanical and electrical performance. It is widely used for Connecting the RF coaxial cables in radio equipments and instruments under Vibration condition and other adverse conditions.

Technical Specification:

Electric Data:
Characteristic Impedance	50 ohms
Frequency Range	DC-11GHz
Working Voltage	1000 VRMS(max at Sea level)
Dielectric Withstanding Voltage	1500 VRMS(min at Sea level)
VSWR	1.3(max)
Contact Resistance	Inner: 1.5 milliohms (max)
	Outer: 0.2 milliohms (max)
Insulation Resistance	5000 megohms (min)
Mechanical Data
Durability Mating	500 Cycles (min)
Material Data
Connector Parts	Materials	Plating
Body	Brass	Nickel
Female Pin	BeCu	Gold
Insulators	PTFE	N/A
Environmental Data
Temperature Range	-65~+165°C (PE Cable -40°C to 85°C)

Note: We can provide other materials and plating specifications according to customers′ requirements.
