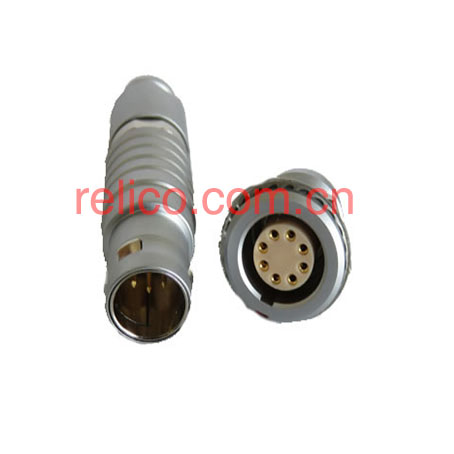

B series

Relico's B series connectors have been used in a variety range of Challenging applications and environments including: Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Module Power, Sensor, Sensor Systems Instrumentation, Analysis Application



Technical Specification:

Shell size:	0B/1B/2B/3B/4B/5B
Contact type:	Solder, PCB , Crimp type
Keyings:	One keying or two keying with different degree like 30.45.60,,,,
Shielding:	360 angle screening for full EMC shielding.
Cntacts no.:	0B series:  2, 3, 4, 5, 6, 7, 9pins
	1B series: 2, 3, 4, 5, 6, 7, 8, 10, 14 16pins
	2B series:  2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18,19,26,32 Pins
	3B series:  2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18,20,22,24,26,30 pins
	4B series:  4, 6, 7, 10, 12, 16,20,24,30,40,48 pins
	5B series:  2, 4,10,14,16,20,30,40,48,50,54,64 pins
Watertight Rank	IP50
Lock type:	Push-pull self-latching system;
Cable assembly:	Help customer to assemble cable to plug
Cable:	with or without shielding, braid
Working conditions:	Rugged housing for extreme working conditions.
Package:	Carton size: 15*18*10cm


Shanghai Relico Electrical Technology Co.,Ltd.Is set up to offer high reliability electrical interconnect solutions for customers. Relico Company has developed a range ofMil-Spec connectors, Industrial connectors, RF coaxial connectors and other interconnect productsfor the information technology and communications equipment applications, including the converging voice, video, data communications and current transmission facilities. We are continuously devoting attention to communications and information processing markets, including cellular telephone data communication, information processing systems, commercial aviation, aerospace and military electronics, as well as automotive, rail and other transportation and industrial applications.
