| Gender: | male and female |
|---|---|
| Application: | Automotive |
| Type: | plug and socket |
| Model Number: | K series |
| Brand Name: | Relico |
| Place of Origin: | China (Mainland) |
| Shell: | Brass |
| Plating: | Chrome |
Quick Details
Specifications

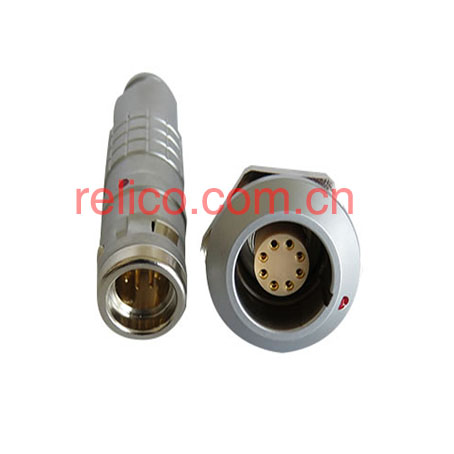

K series
Relico's K series connectors have been used in a variety range of Challenging applications and environments including: Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Module Power, Sensor, Sensor Systems Instrumentation, Analysis Application
Technical Specification:
Shell size: |
0K/1K/2K/3K/4K/5K |
Contact type: |
Solder, PCB , Crimp type |
Keyings: |
One keying or two keying with different degree like 30.45.60,,,, |
Shielding: |
360 angle screening for full EMC shielding. |
Cntacts no.: |
0K series: 2, 3, 4, 5, 6, 7, 9pins |
1K series: 2, 3, 4, 5, 6, 7, 8, 10, 14 16pins | |
2K series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18,19,26,32 Pins | |
3K series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18,20,22,24,26,30 pins | |
4K series: 4, 6, 7, 10, 12, 16,20,24,30,40,48 pins | |
5K series: 2, 4,10,14,16,20,30,40,48,50,54,64 pins | |
Watertight Rank |
IP68 |
Lock type: |
Push-pull self-latching system; |
Cable assembly: |
Help customer to assemble cable to plug |
Cable: |
with or without shielding, braid |
Working conditions: |
Rugged housing for extreme working conditions. |
Package: |
Carton size: 15*18*10cm |
Shanghai Relico Electrical Technology Co.,Ltd. Is set up to offer high reliability electrical interconnect solutions for customers. Relico Company has developed a range of Mil-Spec connectors, Industrial connectors, RF coaxial connectors and other interconnect products for the information technology and communications equipment applications, including the converging voice, video, data communications and current transmission facilities. We are continuously devoting attention to communications and information processing markets, including cellular telephone data communication, information processing systems, commercial aviation, aerospace and military electronics, as well as automotive, rail and other transportation and industrial applications.
