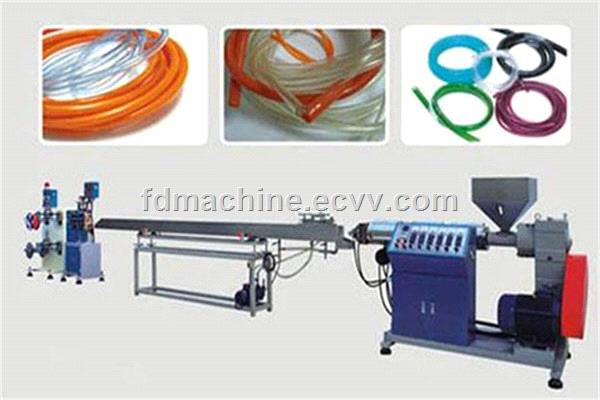

1. Low energy PVC profile extrusion line for sealings
Product name contains the specifications, size, material, as far as possible parameter, model, USES the content such as;
2. Product general information
Place of Origin: |
China |
Brand Name: |
BQX |
Model Number: |
SJ30-65 |
Certification: |
CE,SGS |
3. Product commerce clause
Minimum Order Quantity: |
1 set |
Price: |
USD20000-42000 |
Packaging Details: |
Wood pallet covered by plastic film, 1*40GP Containers |
Delivery Time: |
40 days |
Payment Terms: |
L/C,T/T |
Supply Ability: |
10 sets/month |
4. Product introduction
Quick Detail:
Low energy PVC profile extrusion line for sealings uses single screw extruder, Raw material is Soft PVC
Description:
Low energy PVC profile extrusion line for sealings is used for continuous production of PVC sealing strip.It is composed of feeding system,extruder,water cooling system,haul-off unit,winding machine or double roller,electric control system and coordinated with different specification of moulds.this line is advanced in design,high in output,good in plasticization and low in energy consumption.the finished product is widely used in cars, windows, refrigerators, etc.
Applications:
Low energy PVC profile extrusion line for sealingsis mainly used to produce sealings for Window and various doors, cabinets, home appliances and other industrial areas. It also used to produce sealings for car, refrigerator.
Specifications:
Mode |
Screw Dia. |
Rotational |
Capacity |
Drive Power |
SJ-30-/25CY |
30mm |
10-160r/min |
19.5kg/h |
2.2kw,3kw |
SJ-45/25HY |
45mm |
10-90r/min |
22.5kg/h |
5.5kw |
SJ-45/25CY |
45mm |
16-160r/min |
35kg/h |
7.5kw,11kw |
SJ-45/28CY |
45mm |
16-160r/min |
40kg/h |
7.5kw,11kw |
SJ-45/25HY |
45mm |
16-160r/min |
35kg/h |
11kw |
SJ-50/25HY |
50mm |
16-160r/min |
40kg/h |
11kw,15kw |
SJ-65/25HY |
65mm |
8-80r/min |
100kg/h |
18.5kw |
SJ-65/28CY |
65mm |
15-120r/min |
100kg/h |
18.5kw,22kw |
SJ-65/28HY |
65mm |
16-160r/min |
120kg/h |
22kw,30kw |
SJ-65/30CY |
65mm |
15-120r/min |
120kg/h |
22kw,30kw,37kw |
SJ-65/34CY |
65mm |
15-120r/min |
120kg/h |
22kw,30kw,37kw |
SJ-70/25HY |
70mm |
8-80r/min |
120kg/h |
22kw |
SJ-90/25HY |
90mm |
10-100r/min |
155kg/h |
30kw,45kw,55kw |
SJ-120HY |
120mm |
30-90r/min |
250kg/h |
75kw |
Competitive Advantage:
Advantages of PVC sealing strip: good performance of flexibility and anti compression deformation, ageing resistance, ozone proof, chemical resistance, etc.
1. Good appearance: Smoth and beautiful
2. Good elasticity and anti-compressive deformation,resistance aging and ozone and chemical action
3. Good PVC material quality:Range the temperature from -20 °F - 150 °F (-29°C - 65.5°C)
4. Good Weather resistant
5. Good Fire and Water resistance
Tag: PVC sealing extrusion line, sealing strip extrusion line, Refrigerator door gasket extrusion line,
