| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Place of Origin: | China (Mainland) |
| Model Number: | SH121-3 |
| Brand Name: | FRAN |
| Power(W): | 8900 |
| Drive Type: | Gear Drive |
| Usage: | Farm Tractor |
| By wheel: | 2WD |
| Type: | Walking Tractor |
| Condition: | New |
Quick Details
Specifications

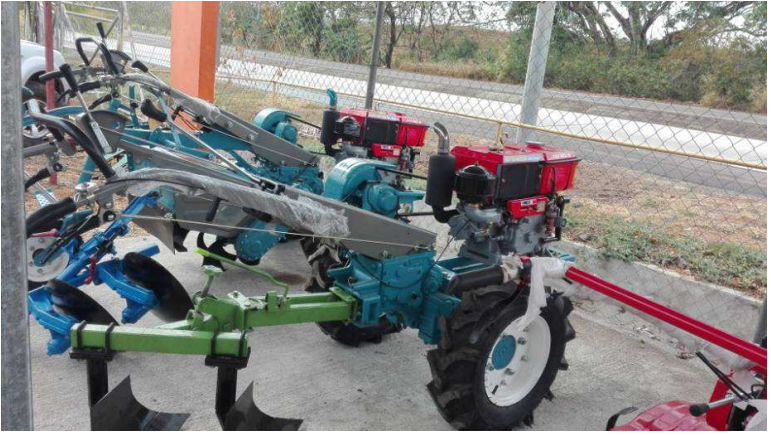

Machine Introduction:
It has small and compact structure, light weight, long service life, reliable performance,
Easy operation and good running ability
Advantage of Walking Tractors:
1.It is suitable for operating in paddy field, dry field, orchard, greenhouse,hilly field.
2.with matched accessories and farm implement, it can finish many operations such as ploughing,
cultivating, harrowing harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying,
threshing, seeding, milling, fooder cutting and so on
Technical Parameters:
Item |
Unit |
Design Value | |
General |
Model |
/ |
SH121-3 |
Type |
/ |
Drive and Traction | |
Overall Dimensions |
mm |
2230×950×1130 | |
Wheel Track |
mm |
680-760 | |
Min. Ground Clearance |
mm |
210 | |
Min. weight in Use |
kg |
426 | |
Additional Weight |
kg |
43 | |
Gear Number(Forward/Reverse) |
/ |
6/ 2 | |
Theoretical Speed |
km/h |
Forward : Ⅰ 2.21 Ⅱ 4.28 Ⅲ 6.64 Ⅳ 8.22 Ⅴ 14.63 Ⅵ 24.5 Reverse: I 1.75 II 6.49 | |
Connection Mode between |
/ |
Triangle Belt | |
Starting Mode |
/ |
ELECTRIC | |
Enigine |
Model |
/ |
SH195NM |
Type |
/ |
SINGLE CYLINDER,HORIZONTAL TYPE, WATER COOLING, 4TROKE | |
Number of Cylinder |
1 | ||
Cylinder Bore×Stroke |
mm |
95×100 | |
Displacement |
L |
0.709 | |
Compression Ration |
/ |
21:1 | |
Rated Power |
HP |
12 | |
Rated Rev. |
r/min |
2200 | |
Cooling Systerm |
/ |
Water-Cooling | |
Headlamp |
Model |
/ |
C201-006 |
Fuel Tank |
Model |
/ |
195A-11100 |
Working Pressue |
kpa |
100-120 | |
Volume |
L |
11 | |
Silencer |
Dimension of Anechoic Chamber |
mm |
Φ138×190 |
Weight |
kg |
1.43 | |
