| Brand Name: | ACIR |
|---|---|
| Place of Origin: | China (Mainland) |
| Driven Mode: | Electric, Hydraulic, Diesel |
| Rated Pull: | 1-50T at first layer |
| Rated Speed: | 9-15 m/min at fist layer |
| Drum Type: | Plain / Split Type |
| Chain Diameter: | 12.5-60mm |
| Brake / Clutch: | Manual / Hydraulic |
| Control: | Local / Remote |
| Certificate: | CCS, BV, ABS, GL, LR, DNV, RINA |
Quick Details
Specifications

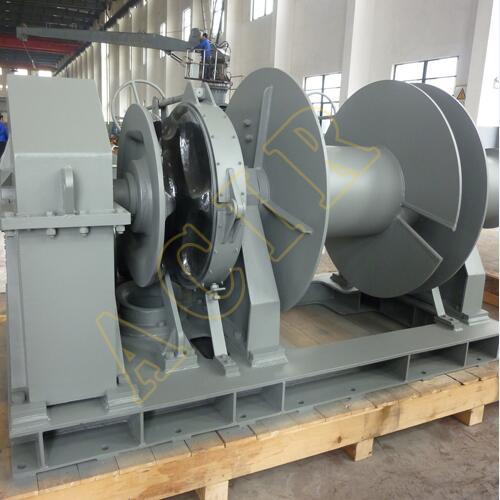

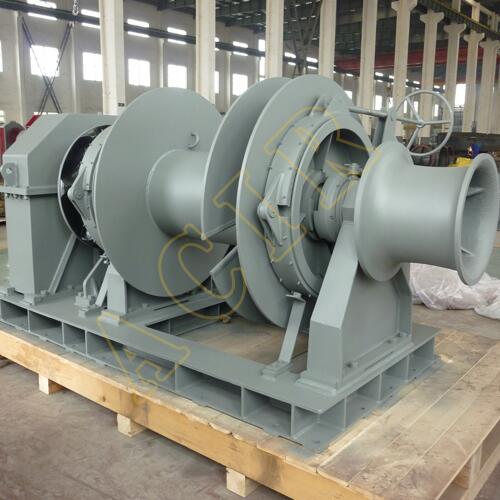

Marine Combined mooring and anchor windlass, normally located at the fore deck for mooring and anchor handling purpose.
Configuration: one or two gypsy (chain wheel, or wildcat), one or two mooring rope drum in any type and drum capacity, with or without warping head.
Driven Mode: Manual, Electric, Hydraulic, or Diesel Engine
Suitable for Chain Diameter: 12.5mm to 80mm, Grade 2 or 3.
Mooring Rope Specification: as per client'S request.
Brake and Clutch Operating Method: Manual and hydraulic operated.
Control Method: Local control installed nearby the windlass.
Remote control from bridge or wheelhouse
Classification Society Certificate: CCS, BV, ABS, DNV, LR, GL, IRS,etc
Delivery Lead Time: 30-120 days as per different certificate requested by client.
Optional Parts:
1. Load, speed and rope/anchor chain monitoring system is available.
2. Overload protection device is available.
3. Explosion proof function for our windlass upon request.
