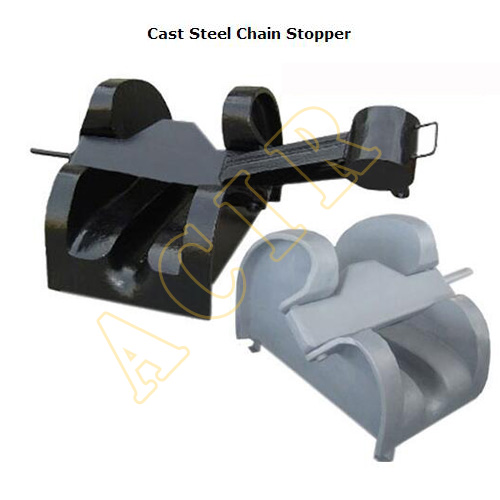

CB*286-84 Bar Type Chain StopperIs cast steel lever chain stopper that is commonly used to control the movements of anchor chain and reduce the load of windlass. It is applicable to AM1, AM2, AM3 anchor chain, which diameter ranges from 12.5mm to 68mm. this cast lever chain stopper is strictly produced according to the shipbuilding standard CB*286-84. It meets the regulatory requirements of CCS, GL, LR, DNV or other classification societies.

Features of CB*286-84 Bar Type Chain Stopper

1.Model type: cast lever chain stopper

2.Standard: CB*286-84

3.Material: cast steel (ZG25 II)

4.Nominal Anchor Chain Diameter: 12.5-68mm

5.Nominal Weight: 20-363KGS

6.No cracks, air holes, scars or any defects to influence chain stoppers'Strength.

7.Lubricated friction surface and bitumen paint.

8.Qualified quality certificate and the certificates are CCS, ABS, BV, LR, GL, DNV, NK, etc.

9.Can be designed according to customers' requirements.
