| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO9001 |
| Dimension(L*W*H): | see Product Description |
| Weight: | 280kg |
| Model Number: | QD |
| Brand Name: | Brilliant |
| Place of Origin: | China (Mainland) |
| Power: | see below |
| Voltage: | see below |
| Driven Type: | Pneumatic |
| Automatic Grade: | Semi-Automatic |
| Packaging Material: | Paper,Wood |
| Packaging Type: | Case |
| Application: | Chemical,Machinery & Hardware |
| Condition: | New |
| Capacity(cpm): | 30-50 |
| Diameter(mm): | 50-200 |
| Height (mm): | 50-250 |
Quick Details
Specifications

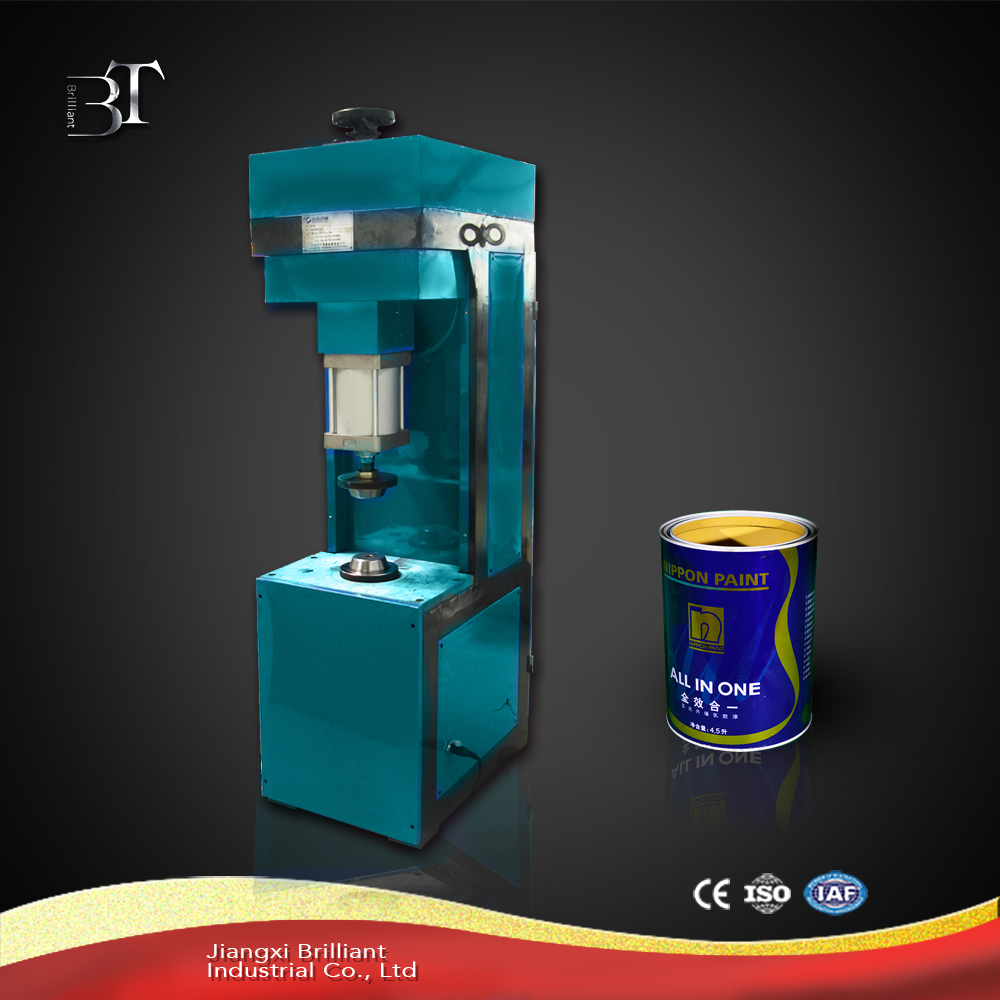

High-quality and low price tin can flanging machine in china
| Ⅰ.Function | |
|
this machine is used in flanging of big or small round can in can factory. Simple in structure, easy operation, it is used with the 4A68 can seamer with four rollers by the company. |
|
| Ⅱ.Major technical parameters | |
| Capacity(cpm) | 30-50 |
| Diameter(mm) | 50-200 |
| Height (mm) | 50-250 |
| Thickness of tinplate(mm) | ≤0.4 |
| Cylinder(mm) | 160×100 |
| Air pressure(kg f/cm2) | 4-6 |
| Size (mm) | 500×740×1890 |
| Weight (kg) | 280 |
| Voltage(v) | 220 |
