| Type: | Axial Flow Fan |
|---|---|
| Certification: | CE,ROHS,UL |
| Speed: | 4000-6000RPM |
| Air Volume: | 2.98-5.10CFM |
| Power: | 0.65-1.96W |
| Voltage: | 5v 12v 24v |
| Model Number: | XYJ4010 |
| Brand Name: | XINYUJIE |
| Place of Origin: | China (Mainland) |
| Blade Material: | Plastic |
| Mounting: | Free Standing |
| Size: | 40x40x10mm |
| Bearing type: | ball bearing or sleeve bearing |
| Warranty: | 3years for ball beaing fan and 1 year for sleeve bearing fan |
| Startup voltage: | 3.5v 6v 12v |
| Current: | 0.06-0.30A |
| Static pressure: | 1.94-4.51mmH2O |
| Noise level: | 22-33dBA |
| Weight: | 14.00g |
| Lead wire: | 2wires/3wries/4wires |
| Function: | waterproof/FG/RD/PWM |
Quick Details
Specifications
DC 24V 40 x 40 x 10mm 4010 Brushless Cooling Fan
Parameter
Drawing
Packing
in seaworthy carton or customized
Lead time
7working days for sample fans
20working days for mass order
If for waterproof fan,it will take 1more week
Payment
T/T,Paypal,Western Union
Certificate
Parameter
| Model | Rated Voltage (VDC) |
Startup Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air flow (CFM) |
Static Pressure (mmH2O) |
Noise Level (dBA) |
Weight (G) |
| 4010 | 5 | 3.5 | 0.30 | 7000 | 7.02 | 4.51 | 33 | 14.00 |
| 4010 | 5 | 3.5 | 0.18 | 5500 | 4.82 | 2.68 | 26 | 14.00 |
| 4010 | 5 | 3.5 | 0.13 | 4500 | 3.77 | 1.94 | 22 | 14.00 |
| 4010 | 12 | 6 | 0.13 | 7000 | 7.02 | 4.51 | 33 | 14.00 |
| 4010 | 12 | 6 | 0.09 | 5500 | 4.82 | 2.68 | 26 | 14.00 |
| 4010 | 12 | 6 | 0.06 | 4500 | 3.77 | 1.94 | 22 | 14.00 |
| 4010 | 24 | 12 | 0.08 | 7000 | 7.02 | 4.51 | 33 | 14.00 |
| 4010 | 24 | 12 | 0.06 | 5500 | 4.82 | 2.68 | 26 | 14.00 |
| 4010 | 24 | 12 | 0.05 | 4500 | 3.77 | 1.94 | 22 | 14.00 |

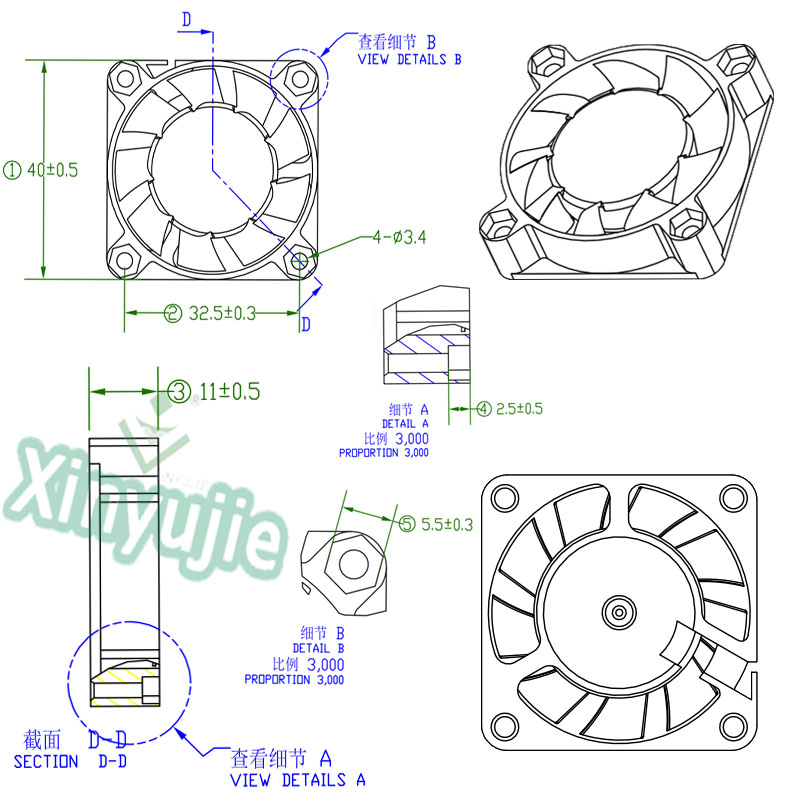

Drawing
Packing
in seaworthy carton or customized
Lead time
7working days for sample fans
20working days for mass order
If for waterproof fan,it will take 1more week
Payment
T/T,Paypal,Western Union
Certificate
