| Type: | Axial Flow Fan |
|---|---|
| After-sales Service Provided: | No overseas service provided |
| Certification: | CE,ROHS,UL |
| Speed: | 4500-7500RPM |
| Air Volume: | 5.30-7.50CFM |
| Power: | 1-1.64W |
| Voltage: | 5V 12V 24V |
| Model Number: | XYJ4015 |
| Brand Name: | XINYUJIE |
| Place of Origin: | China (Mainland) |
| Blade Material: | Plastic |
| Mounting: | Free Standing |
| Size: | 40X40X15mm |
| Bearing type: | ball bearing or sleeve bearing |
| Warranty: | 3years for ball beaing fan and 1 year for sleeve bearing fan |
| Startup voltage: | 3.5v 6v 12v |
| Current: | 0.05-0.30 |
| Static pressure: | 2.40-5.38mmH2O |
| Noise level: | 20-36dBA |
| Weight: | 21.00G |
| Lead wire: | 2wires/3wries/4wires |
| Function: | waterproof/FG/RD/PWM |
Quick Details
Specifications
High quality 40mm 4015 40x40x15mm DC fan for general industrial equipments
Parameter

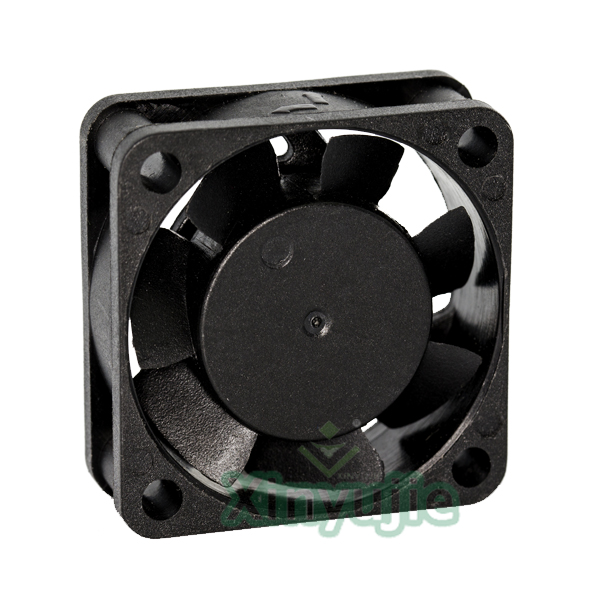

Fan picture
Packing
in seaworthy carton or customized
Lead time
7working days for sample fans
20working days for mass order
If for waterproof fan,it will take 1more week
Payment
T/T,Paypal,Western Union
Certificate
Parameter
| MODEL | Rated Voltage (VDC) |
Startup Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air flow (CFM) |
Static Pressure (mmH2O) |
Noise Level (dBA) |
Weight (G) |
| XYJ05B4015H | 5 | 3.5 | 0.30 | 7500 | 7.50 | 5.38 | 36 | 21.00 |
| XYJ05B4015M | 5 | 3.5 | 0.25 | 6000 | 6.40 | 4.25 | 30 | 21.00 |
| XYJ05B4015L | 5 | 3.5 | 0.20 | 4500 | 5.30 | 2.40 | 20 | 21.00 |
| XYJ12B4015H | 12 | 6 | 0.20 | 7500 | 7.50 | 5.38 | 36 | 21.00 |
| XYJ12B4015M | 12 | 6 | 0.15 | 6000 | 6.40 | 4.25 | 30 | 21.00 |
| XYJ12B4015L | 12 | 6 | 0.09 | 4500 | 5.30 | 2.40 | 20 | 21.00 |
| XYJ24B4015H | 24 | 12 | 0.11 | 7500 | 7.50 | 5.38 | 36 | 21.00 |
| XYJ24B4015M | 24 | 12 | 0.07 | 6000 | 6.40 | 4.25 | 30 | 21.00 |
| XYJ24B4015L | 24 | 12 | 0.05 | 4500 | 5.30 | 2.40 | 20 | 21.00 |

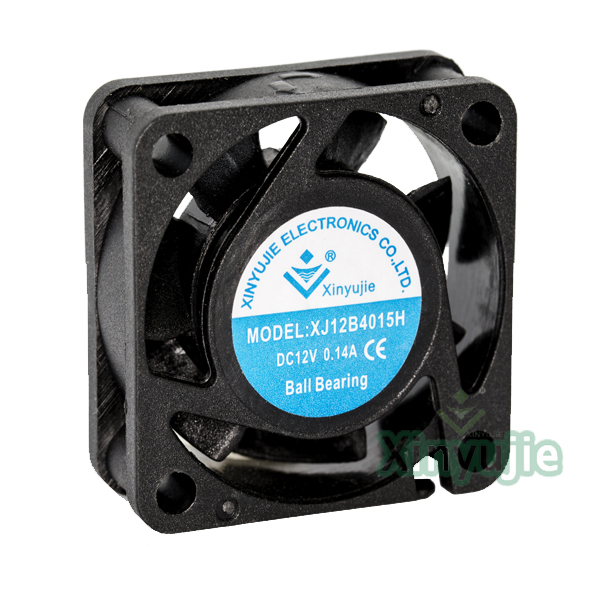

Fan picture
Packing
in seaworthy carton or customized
Lead time
7working days for sample fans
20working days for mass order
If for waterproof fan,it will take 1more week
Payment
T/T,Paypal,Western Union
Certificate
Why us?
1. Performance
Low noise, light vibration,strong cooling, muti-role, long life and environmental protection.
2.Application
Widely used in computer communication products, optoelectronic products consumer, electronic products ,automobile electronic equipment switch, medical equipment, heater, air conditioners, inverter welding machine, automated teller machines, car freezers induction ,cooker ,audio equipment ,environmental protection equipment ,refrigeration equipment and other machines.
3. Technical Support
Our engineering team is dedicated to providing you with the most professional service. If you have any special needs for the fan specifications, please let us know. We will provide you with product design, mold development and qualified samples.
4. Samples and Orders
If we reach an agreement in product parameters and price, a try order is welcome.
5. Delivery
We have an efficient team and achieve elastic productivity by efficient management. We promise that lead time base the producing progress of others after the verification of orders. Some even can be done within10 days.
6. after-sales Service
All customers are our friends. We will try our best to learn about your demand for products and applications.
We conduct a customer satisfaction survey every year to learn about customers' feedback to our products and service comprehensively. All customer feedbacks will be replied within 24 hours.
