Application:

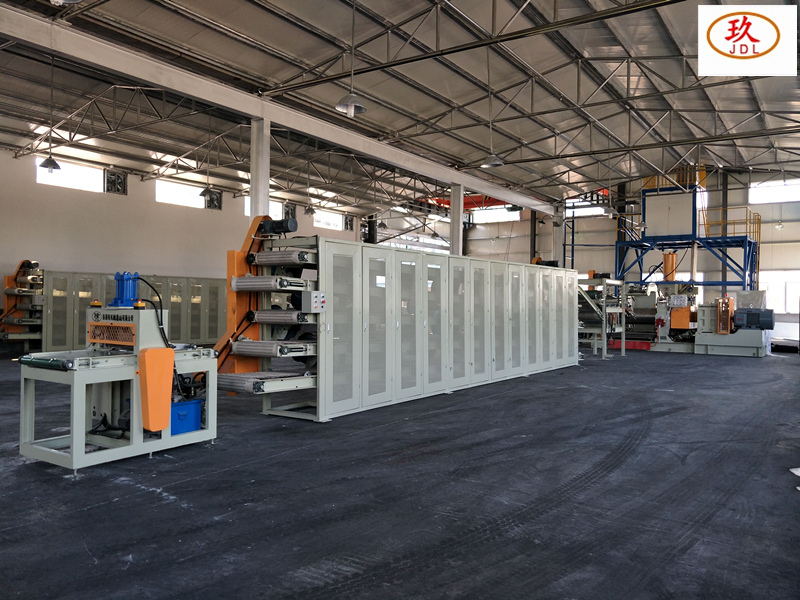

the batch off cooler is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.

Structure:

There are two kinds: overhead and floor-standing types.

the clients can choose high or low disposition according to the practical requirements. the high deposition batch off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio≤100mm; there are three working positions for auto entering and outputting of material tray; auto rubber collecting device; auto cutter device; it has high automization and can realize nobody operating.

Technical Parameters:

Structure:Floor-standing type Chain-Belt type Overhead type

Max. Rubber Sheet Width (mm) 600 600 800 900

Rubber Sheet thickness (mm) 4-10 2-12 4-10 6-12

Temperature over room temperature after rubber sheet cooling (℃) 10 10 15 5

Linear Speed of taking-in conveyor (m/min) 3-24 3-24 3-35 4-40

Linear speed of sheet-hanging chain (m/min) 0.82 Chain-belt layer: 5 0.117-1.17 4-40

Hanging height of the sheet hanging bar (m) 1000-1500 Net 1000-1500 1400

No. of cooling fans (set) 12  20 18 26

Total power (KW) 13.7  28.8 18-34
