| Dimensions: | 20mm-150mm |
|---|---|
| Material: | Steel |
| Application: | mining |
| Brand Name: | DT7 |
| Type: | DT |
| Model Number: | DT7 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product description
1.20 years on grinding ball manufacturing and exporting.
2. Delivery within 15 days.
3. Full transport insurance.
4. Sell to 32 countries on 5 continents.
5. One-stop grinding ball solution in Oriental company Specification
the production process of the forged grinding balls
1). Raw material:
All the material is qualified with certificate and made in the Chinese largest steel production enterprise.
2). Different steel specifications ccording to the clients's requirements.
Main Steel Material:C45 Steel;60Mn Steel;B2 Steel
3). Steel Cutting:
the steel bars should be cut into small pieces according to the size of steel balls required by the order.
4). Heating:
We use the electric furnace instead of the traditional coal stove, the biggest advantage is that all the steel bars can accept the most approriate temperature during the heating progress. It affect the hardness and toughness directly.
5). Hammer forging:
the raw material is forged to a certain deformation by the air hammer, when the compression ratio increased, the micro-structure become more compact so that the hardness and the toughness can be improved.
6). Heat treatment:
both the water quenching heat treatment production line and our own temperature control technics are important.
We have mature production technicians responsible for the heat treatment process as we know this process affect the grinding balls performance directly.
7). Quality Control.
Raw material test before production
Hardness test Drop Test Impact Test Core pulling Test after production
SGS test before delivery
Certificate: ISO 9001:2008
Packing

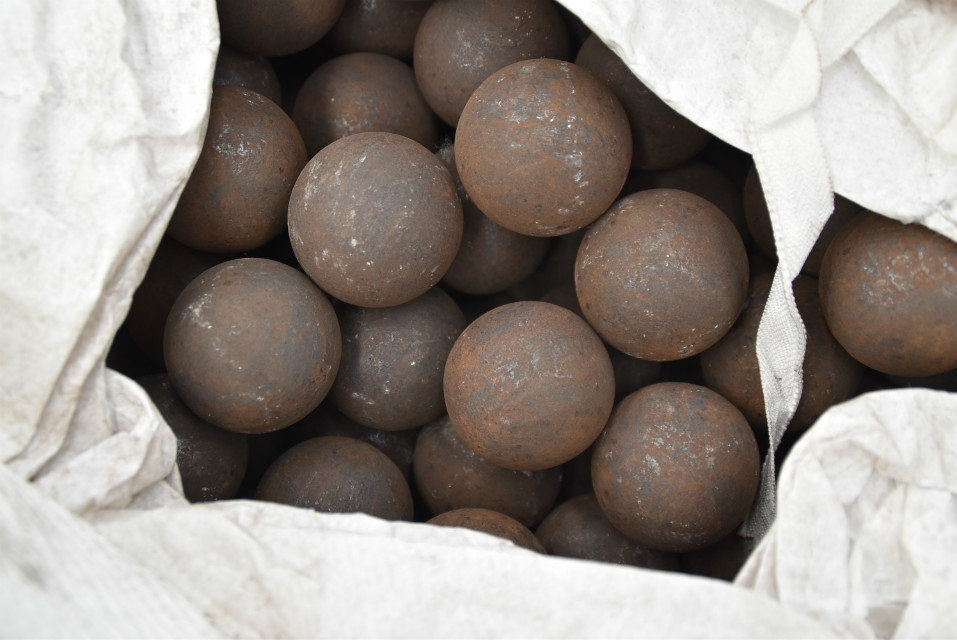

1.Bags:1000KG polypropylene bags which are highly resistant to UV rays and secure bag straps to reduce time and effort in loading and unloading.
2.Drums:Recyeled drums can also be supplied. the drums have a removable lid and compression ring for secure storage.Drums are more efficient for some modes of transportation and can also be delivered on wooden pallets.
1.20 years on grinding ball manufacturing and exporting.
2. Delivery within 15 days.
3. Full transport insurance.
4. Sell to 32 countries on 5 continents.
5. One-stop grinding ball solution in Oriental company Specification
| Brand | Material | C | Mn | Si | Cr | P/S | Ni |
| DT-1 | 50Mn | 0.48-0.56 | 0.65-1.0 | 0.17-0.37 | 0.15max | 0.035max | 0.05max |
| DT-2 | 60Mn | 0.57-0.65 | 0.70-1.1 | 0.17-0.37 | 0.25max | 0.035max | 0.05max |
| DT-3 | 65Mn | 0.62-0.75 | 0.90-1.2 | 0.17-0.37 | 0.25max | 0.035max | 0.10max |
| DT-4 | 75MnCr(B2) | 0.72-0.85 |
0.70-0.90 | 0.17-0.35 | 0.40-0.60 | 0.035max | 0.15max |
| DT-5 | B3 | 0.50-0.65 | 0.4-1.0 | 1.40-1.80 | 0.77-1.10 | 0.035max | 0.15max |
| DT-6 | 45# | 0.42-0.48 | 0.50-0.80 | 0.17-0.37 | 0.15max | 0.035max | 0.05max |
Nominal |
Diameteical |
Weight of Single |
Number of piece of |
Surface |
Impact |
DIA 20 |
|
32 |
31250 |
55-65 |
≥12 |
DIA 60 |
|
888 |
1126 | ||
DIA 110 |
+4 |
5457 |
182 | ||
DIA 140 |
+4 |
11278 |
88 |
the production process of the forged grinding balls
1). Raw material:
All the material is qualified with certificate and made in the Chinese largest steel production enterprise.
2). Different steel specifications ccording to the clients's requirements.
Main Steel Material:C45 Steel;60Mn Steel;B2 Steel
3). Steel Cutting:
the steel bars should be cut into small pieces according to the size of steel balls required by the order.
4). Heating:
We use the electric furnace instead of the traditional coal stove, the biggest advantage is that all the steel bars can accept the most approriate temperature during the heating progress. It affect the hardness and toughness directly.
5). Hammer forging:
the raw material is forged to a certain deformation by the air hammer, when the compression ratio increased, the micro-structure become more compact so that the hardness and the toughness can be improved.
6). Heat treatment:
both the water quenching heat treatment production line and our own temperature control technics are important.
We have mature production technicians responsible for the heat treatment process as we know this process affect the grinding balls performance directly.
7). Quality Control.
Raw material test before production
Hardness test Drop Test Impact Test Core pulling Test after production
SGS test before delivery
Certificate: ISO 9001:2008
Packing
1.Bags:1000KG polypropylene bags which are highly resistant to UV rays and secure bag straps to reduce time and effort in loading and unloading.
2.Drums:Recyeled drums can also be supplied. the drums have a removable lid and compression ring for secure storage.Drums are more efficient for some modes of transportation and can also be delivered on wooden pallets.
Shipping
1.Port of Loading: Qingdao Port,China
2.Partial shippment allowed
3.by DHL/TNT express for samples order.Door to door to delivery;
4.Appointed freight forwarder by customers is acceptable
