| Brand Name: | FG |
|---|---|
| Style: | Vertical |
| Pressure: | High Pressure |
| Usage: | Industrial |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | FG-TXF600 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

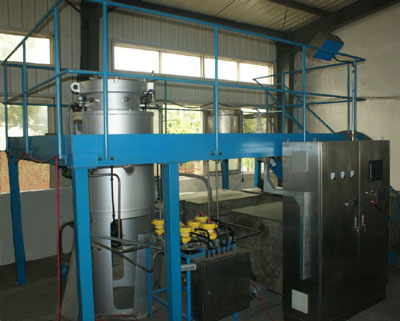

Ceramic Core Leaching Autoclave
the Ceramic Core Leaching Autoclave is a
System for removal of silicon ceramic cores from aerofoils by means of eroding
Them away via a chemical process.
Model |
FG-TXF1065 |
FG-TXF750 |
FG-TXF600 |
Inner material |
316L |
316L |
316L |
Inner Diameter |
1065mm |
750 mm |
600 mm |
Depth |
1800mm |
1200 mm |
1200 mm |
Maximum working temperature |
200℃ |
200℃ |
200℃ |
Air supply requirements |
6 bar |
6 bar |
6 bar |
Water supply |
1*20 mm bore |
1*20 mm bore |
1*20 mm bore |
Control system |
PLC Siemens control |
PLC Siemens control |
PLC Siemens control |
Platform size(typical) |
L= 6000mm |
L= 5500mm |
L= 4982mm |
Note: We can design the special machines according to the customer's requirements.
