Model: GM Series
Replace for: SAI GM1 Series
Displacement: 60-12000ml/r
Torque: 200-48000N. M

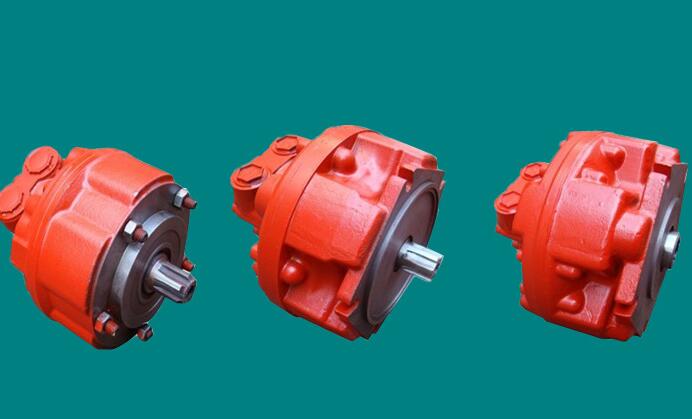

GM series bent axle radial plunger piston motor such characteristics as: High mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.

Features:
1. High Efficiency, small volume, light weight
2. High starting torque, high specific speed range
3. Motor can be used in the pump working condition and realize freewheel operation condition.
4. Compact structure, reasonable design
5. Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation.
6. the mounting dimension and more than 80% of internal components can be interchanged with SAI Products.

GM1	GM1-100	GM1-150	GM1-175	GM1-200	GM1-250	GM1-300	GM1-320
Displacement	Cm3/rev	99	154	172	201	243	290	314
Piston	mm	28	35	37	40	44	48	50
Shaft stroke	mm	32	32	32	32	32	32	32
Spec. Torque	Nm/bar	1.54	2.40	2.68	3.14	3.80	4.52	4.90
Press. Rating	bar	250	250	250	250	250	250	250
Peak press.	bar	425	400	375	350	350	300	280
Cont. Speed	rpm	550	550	550	550	450	350	350
Max. Speed	rpm	1000	1000	900	800	700	650	600
Peak power	kW	48	48	48	48	48	48	48
	HP	65	65	65	65	65	65	65
