| Type: | 380V three phase solar pump inverter |
|---|---|
| Model Number: | FA 22K-A |
| Brand Name: | Faradi |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

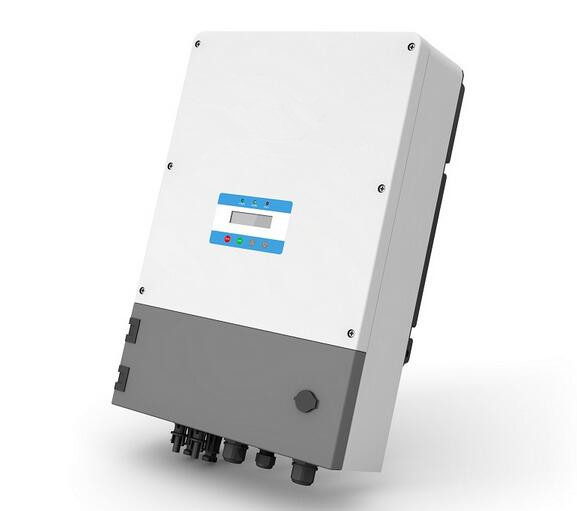

New design 380V three phase solar pump inverter for sale
- Designed dedicated for solar pump, and compatible with various motor types; have excellent performance;
- IP 65 protection level, inverter integrates the combiner box which contains the PV dedicated DC switch, SPD, fuse and other optional accessories;
- Natural cooling design, IP65 high protection level guarantees inverter to be applied under all kinds of outdoor strict environment;
- Using advanced dynamic VI MPPT technique; fast respond and good operating stability;
- Main circuit adopts intelligent power module, high reliability, conversion efficiency reach to 98%;
- Advanced IGBT module, the high and low water position detection control circuit optional;
- Full automatic running; no need manual duty; the pump speed range can be set freely according to the system conditions so that guarantee the running time as long as possible;
- the inverter outer casing is solid and durable, compact size, nice appearance; friendly UI, user can check the real time info and historical info via the LCD display located in the front board; can store the running data up to 8 years;
- Plenty of communication interfaces, such as RS485/CAN/GPRS(optional); the running and status can be checked remotely;
- Inverter has perfect running protection mechanism, such as output short-circuit protection, IGBT over-current protection, input over/under voltage protection, overload protection, module overtemp protection, grounding protection and so on;
- Inverter allows using grid or diesel generator as backup power supply, 24-hour running.
| Model(SPRING) | 15K | 18K5 | 22K | 26K | 30K | 37K | 45K | 55K | 75K |
| Max PV Input Power(Wp) | 21000 | 25900 | 30800 | 36000 | 42000 | 51000 | 67000 | 77000 | 105000 |
| Max DC Input Voltage(Vdc) | 900 | ||||||||
| MPPT Range(Vdc) | 500-680 | ||||||||
| Input String Number | 6 | 1* | |||||||
| MPPT Number | 1 | ||||||||
| Max DC Input Current(A) | 32 | 38 | 46 | 58 | 64 | 78 | 94 | 114 | 164 |
| Rated Output Power(W) | 15000 | 18500 | 22000 | 26000 | 30000 | 37000 | 45000 | 55000 | 75000 |
| Max Output Current(A) | 30 | 39 | 45 | 54 | 60 | 75 | 91 | 112 | 162 |
| Output AC Voltage(V) | 380V / triphase | ||||||||
| Matched Pump Voltage Range (Vac) | 360-440V | ||||||||
| Matched Pump Frequency Range (Hz) | 0-50/60Hz | ||||||||
| Max Conversion Efficiency | 98.2% | ||||||||
| MPPT Efficiency | 99.9% | ||||||||
| Operating Temperature(℃) | -25~+60 | ||||||||
| Noise[dB(A)] | <50dB | ||||||||
| Night Consumption(W) | 0 | ||||||||
| If Electrical Isolated | Transformerless | ||||||||
| Cooling Type | Natural | fan | |||||||
| Protection Level | IP65 | IP54 | |||||||
| Communication Type | RS485/CAN/GPRS | ||||||||
| Dimension(W×D×H)mm | 563*405*190 | 600*306*840 | 600*306*940 | ||||||
| Weight(kg) | 16 | 22 | 30 | 38 | 50 | ||||
* for 26K75K model inverter's DC input, different PV combiner box can be selected according to PV array's configuration (6 in/8 in/10 in/12 in/14 in/16 in-1 out) | |||||||||
