| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1year |
| Certification: | ISO9001:2008 |
| Weight: | 6800Kg |
| Dimension(L*W*H): | 19.37*2.75*3.3m |
| Power(W): | 20.5Kw |
| Voltage: | 220V/380V/400V |
| Model Number: | XPG-800 |
| Brand Name: | AWI |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Rubber-hanging rod wideness: | 950mm |
| Rubber-hanging rod space: | 127mm |
| Rubber-piece suspending greatest length: | 1600mm |
| Rubber suspending greatest weights: | 2200mm |
| Effective rubber hanging rod wideness: | 800mm |
| The number of Air-cooling machine: | 18 |
| Rubber-piece lifting speed: | 27.8m/min adjustable |
| Total power: | 20.5Kw |
| Air-pressing pressure: | 0.4~0.6 MPa |
| Shape size: | 19.37*2.75*3.3m |
Quick Details
Specifications

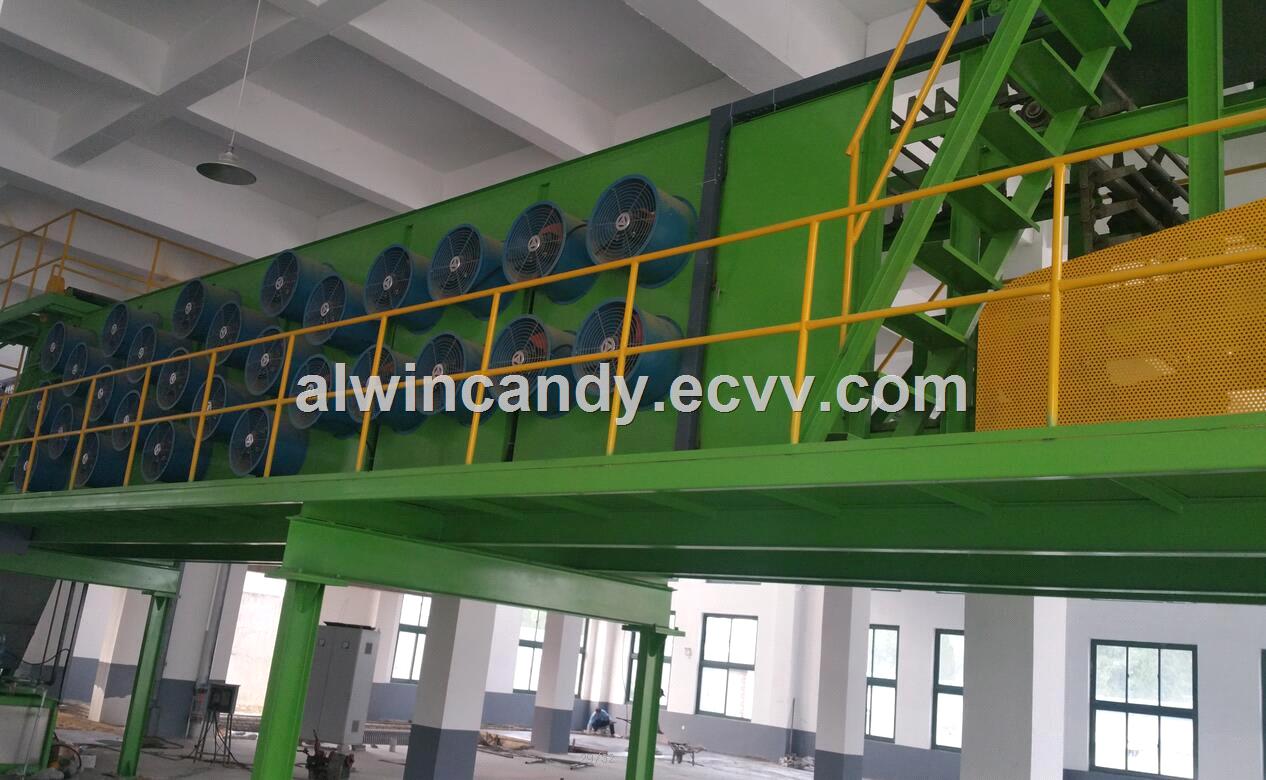

XPG-800 Rubber Piece Cooling Line Technical Parameter
1. EquipmentIntroduction
XPG-800 Rubber Piece Cooling Line is the idealMechanism which isConjugate with sealed smeltingMachine. It is suitable for the processRequirements of mixedConcentratedRubber such as rubber-pieceCooling, rubber Slicing, and rubber overlapping etc. In the most of domestic rubberCompanies, and can also provides the rubber slat for the production of cooling feeding-ExtrudIng machine.
2. Use
Rubber Piece Cooling Line isNecessary equipment for the rubberIndustry, and it can be used as theAccessorial machine for the sealed smeltingMachine which is to cool the rubber piece from the sealed smeltingMachine and piece-rolling machine and to spreadInsulation Reagent.
THe modern smelting process is under continuousProduction, therefore, XPG-800 Rubber Piece Cooling Line can satisfy the requirements of continuousProduction, reach the whole process aims such as rubber piece-taking,Rubber-Marinating, insulation Reagent spreading, clamping andLifting, suspending andCooling, carrying andDrying, severIng andOverlapping,Overlapping piece putting etc.in its design, andIt can be added with weighingMechanism according the customer requirement .
BEcause there is a lot of heat in the process ofRubber-smelting and the rubbermust Be cooled to theRoom temperature in order to Make sure of the rubber material safety in the processPerformance and avoid the self- sculpturing andAdhibitIng because of press sothat it can bestoreD and used in the future .
3. MainlyTechnical Parameter
1. Process parameter
Rubber-piece Thickness6~12 mm
Rubber -slice wideness400~800 mm
RUbber-pieceDisposIng temperature90~120 ℃
Rubber-piece falling temperature40 ℃
MarinatIng time5~10 sec
AIR-cooling time5~10 min
Insulation Reagent temperature20~40 ℃
2. MEchanical Parameter
RUbber-hanging rodWideness950 mm
RUbber-hanging rod space127 mm
RUbber-piece suspending greatest length1600 mm
Rubber suspending greatest weights2200 Kg
EFfective rubber hanging rod wideness800 mm
THe numberofAIR-cooling machine18
RUbber-piece lifting speed≤27.8m/min adjustable
TOtal power20.5 kW
AIR-pressing pressure0.4~0.6 MPa
Shape size (:L×W×H)19.37m×2.75m×3.3m
Weight6800 Kg
