HJWH-250 (400) Horizontal Beam Bending machin


Machine Descriptions:

 HJPH-250(400) model beam bending machine is mainly Used forBending H-

Beam, round steel,angle iron etc. It is easy control and may save lots of time.We



Design and special make this type machine.

    Process simplification.Labor intensity greatly reduced, greatly improved working



Conditions; A substantial increase in labor productivity;Bending quality also greatly

Improved, not only effectively eliminates distortion phenomenon, and even bending



Curvature of the arch;Bending radius can be in a great range of adjustment to suit



Different addition,according to the requirements of the construction site,the



Bending machine can also be used to bending steel (such as tunnels threading pipe),

Steel (such as tunnel lining two steel), straightening rails (such as a tunnel lined with

Two puzzle trolley rails) Reasonable structure, small size, easy operation and

Maintenance, use and reliable.

Main Technical Parameters



Model		HJWH-250	HJWH-400
Max bEnding sEction modulus Cm3		1000	1200
Rolling speed r/min		8.0	8.0
Yield limit   MPa		245	245
Motor power   KW		11	11
Cylinder force  T		60	80
I  beam	Type	250	400
	Min Radius mm	3000	10000
Channel Cross	Type	220	360
	Min Radius mm	2500	10000
Channel Horizontal	Type	200	200
	Min Radius mm	1500	3000
H beam	Type	200×200	400×200
	Min Radius mm	6000	10000

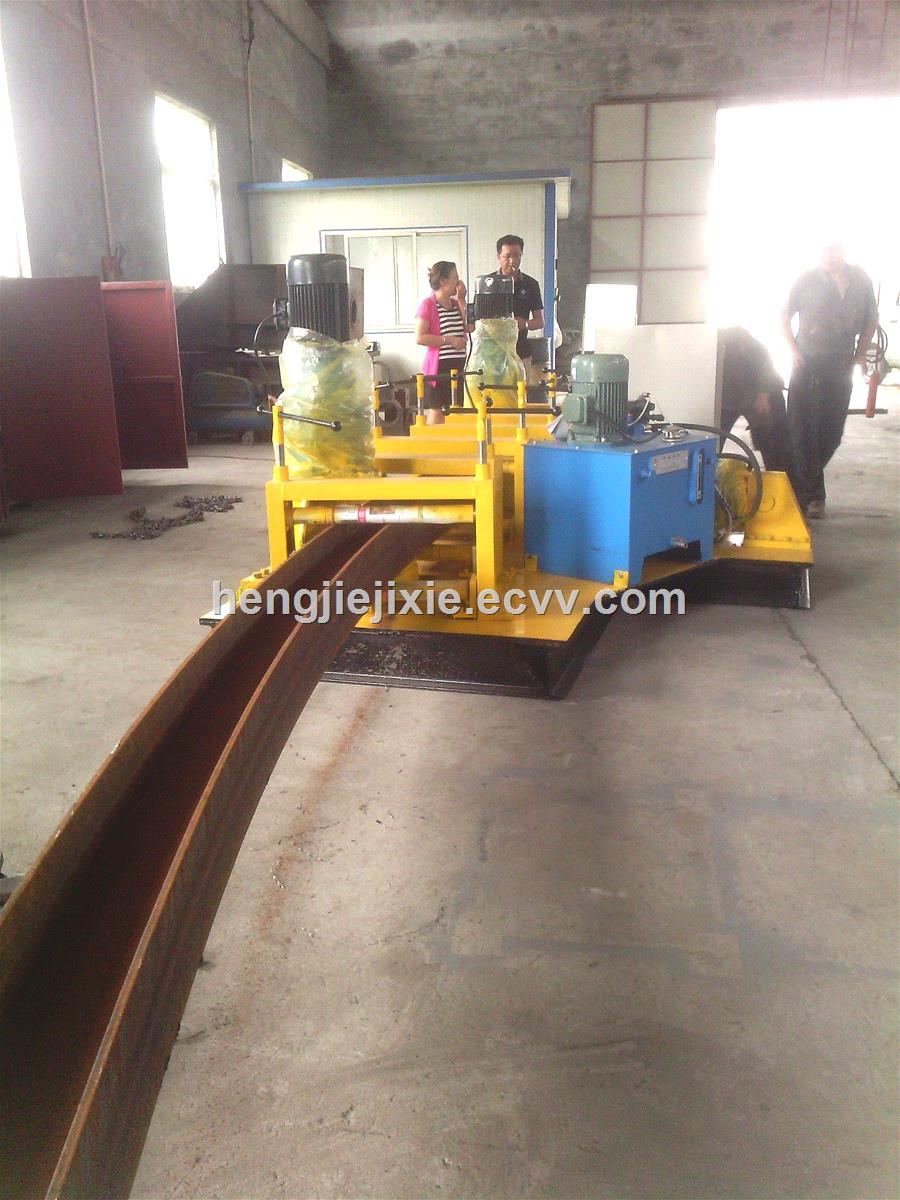

Machine Photos:
