One, suitable for

Tea, food, shrimp, peanut, spices and other granular packing objects. Two, characteristics:

1 three side seal

2 can automatically complete bag making, measuring, cutting, sealing, cutting, counting, at the same time according to customer requirements, such as the configuration of the printing batch number.

3 adopt advanced microcomputer controller to drive the stepper motor to control the bag length, stable performance, convenient adjustment and accurate detection. the use of intelligent temperature controller,

 PID adjustment, to ensure that the temperature range of error control within 1 degrees celsius.

Three, packaging materials:

Polypropylene / polyethylene, aluminum foil / polyethylene, polyester / aluminum / polyethylene, nylon / reinforced polyethylene, paper / polyethylene. Four, technical parameters:

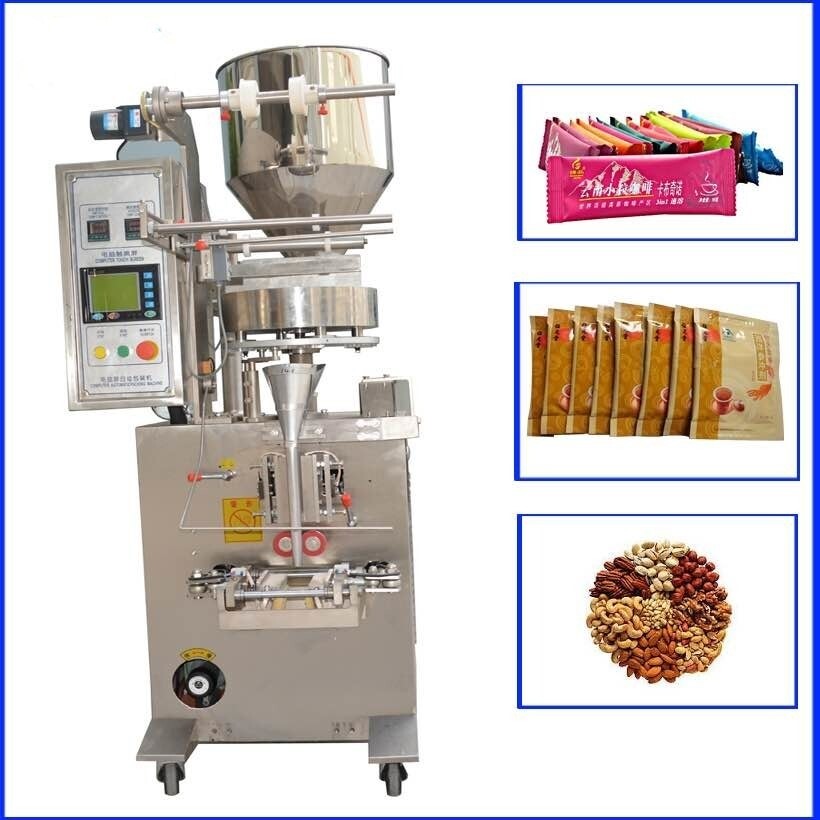

Model YJ-60AK three side sealing granule packaging

 Bag size: 30-140 mm;

 length: 30-180 mm

 Production capacity 30-60 bags / min

 Measuring range 3-150 ml

Total power 220V/50HZ/ 1.9KW

 Machine weight 400KG

Overall dimensions (L * w * h) 900 * 700 * 1700mm
