Quick Details

After-sales Service Provided:	Engineers available to service machinery overseas
Model Number:	Y12
Brand Name:	HENGJIE
Place of Origin:	China (Mainland)
Condition:	New

Specifications

Y12,13 FOrging Hydraulic Press

Machine Description:

Forging hydraulic press is mainly used for a variety of free forging process,the use

of upper and lower anvil and some simple universal tools for stretching, upsetting,

Finishing, punching, cutting and other processes, but also to complete the process of

Fetal film forging.

Forging hydraulic press for the oil pump direct drive to the oil as the working

Medium, a four-post mounted, double-column and four-column pull-down, with a

Mobile table or horizontal moving anvil device

Main Specification

Description		Model	Rated force	Return force	Max working pressure	Lifting stroke	Daylight distance	Speed of slide			Size of table		Main motor power	Movable table			Horizontal trolley
			Rated force	Return force	Max working pressure	Lifting stroke	Daylight distance	Descent down	Pressing down	Return	Left-right	Front back	Main motor power	Size	Stroke	Pressure	Size	Stroke	Traction force
			KN	KN	MPa	mm	mm	mm/s			mm	mm	kw	mm	mm	KN	mm	mm	KN
Formal	Four columns	Y13-500	5000	500	25	1200	2000	300	50	300	1600	1600	3x90	2500x1600	900	300
		Y13-800	8000	800		1200	2000				1600	1600	4x90	2500x1600	900	400
		Y13-1000	10000	1000		1500	2500				1800	1800	5x90	4000x1600	2200	500
		Y13-1600	16000	1250		1600	2800				2100	2000	9x90	4000x2000	2000	630
		Y13-2000	20000	1250		1800	3200				2500	2000	10x90	5000x2200	3000	630
		Y13-3150	31500	4000		2000	3800				3300	2700	16x90	6000x3800	4400	800
		Y13-4000	40000	4000		1500	2300	350		350	2200	2200	18x90	3600x1400	1700	800
Drop down	2 Column	Y12-500	5000	800		1200	2000	300		300	1000	3000	3x90				3000x600	2000	250
	2 Column	Y12-800	8000	1000		1200	2000						4x90	3200x1200	2000	200	3200x600	3200
	4 Column	Y12-1600	16000	1600		1600	3000				2150	2000	9x90	5000x1800	3000	500	4250x1000	4200
	4 Column	Y12-3150	31500	2000		1600	4000				3000	2600	16x90	6000x2200	3400	800	5050x1200	5000

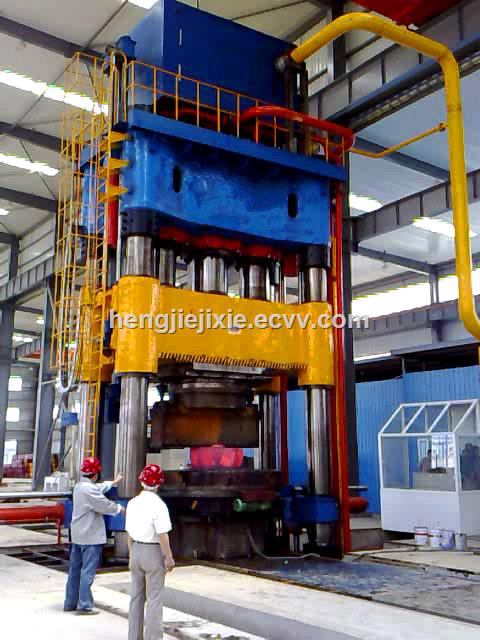

Y1213 Hot or ColdForging Hydraulic Press
