| Machine Type: | Sandblaster |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 5850*1950*4600 |
| Power(W): | 31.65 |
| Material: | Metal / Coil |
| Industry Used: | mental surface cleaning |
| Cleaning Type: | Clean-In-Place (CIP) |
| Cleaning Process: | shot blast clean-up |
| Use: | Burnishing |
| Certification: | CE,RoHS,ISO9001 |
| Fuel: | Electric |
| Feature: | Critical Cleaning / Residue Free,Non-Ionic,Non-Toxic,Rust / Corrosion Inhibitor |
| Model Number: | Q32 |
| Brand Name: | JIAHAO |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications

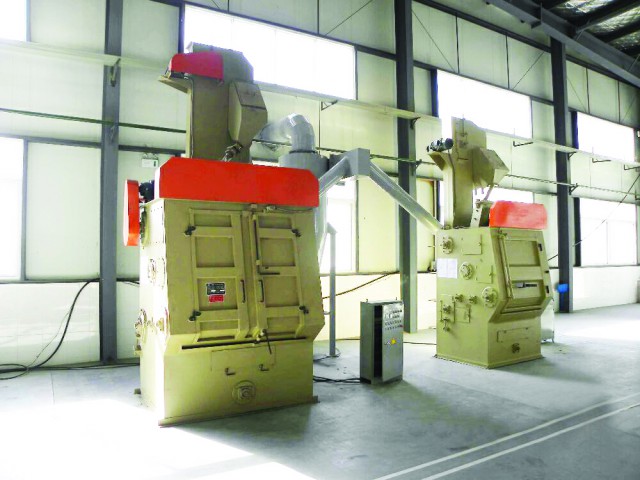

Q32 shotblasting machine/small sand blasting machine
1.Brief Introduction:
Q32 series crawler shot blasting machine is a small shot blasting cleaning equipment, mainly by the room the shotblast cleaning, shot blasting machine assembly, hoisting machine, separator, shot blasting machine electrical system and other accessories.
2.Techincal parameters:
Model
Q326
Q3210
QR3210 Productivity (kg/h)
600-1200
2500-3500
3000-5000 Maximum weight of single pice (kg)
15
30
30 Diameter of end disk(Mn)
650
1000
1000 Effective volum(m)
0.33m
1.05m
1.05m Abrasive flow rate (kg/min)
200
250
250 Effective volume (m3)
0.15
0.3
0.4 Abrasives quantity (kg/min)
100
250
250 Total air volume (m3/h)
2500
3500
4000 over all dimension(mm)
3700*1650*5800
3970*2600*4770
3650*2950*5850 consumption power(kw)
13.47
25.05
31.65 Weight(kg)
3000
5800
7400
