Polycrystalline Module Models
GP-200P-72 GP-195P-72

Electrical Specifications
*STC: Irradiance 1000W/m2, AM1.5 spectrum, module temperature 25℃
Model type GP-200P-72 GP-195P-72
Peak power (Pmax) 200W 195W
Cell Efficiency 17.64% 17.20%
Maximum power voltage (Vmp) 36.8V 36.4V
Maximum power current (Imp) 5.43A 5.36A
Open circuit voltage (Voc) 44.5V 44.2V
Short circuit current (Isc) 5.78A 5.70A
Power Tolerance                   ±3%
Maximum system voltage         1000V
Series fuse rating (A)             8
Number of bypass diode             3

Temperature Coefficients
Current Temperature Coefficient  α(Isc) 0.08%/℃

Voltage Temperature Coefficient  β(Voc) - 0.32%/℃
Power Temperature Coefficient   γ(Pmax) -0.38%/℃
Nominal Temperature of  Cells(NOTC) 46±2℃
Application Temperature Range -40~+85℃

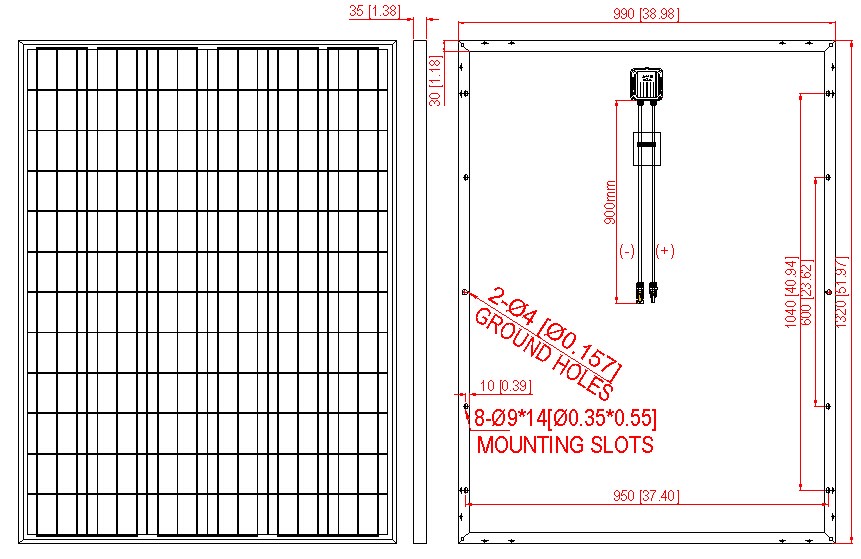

 Mechanical Characteristics
Dimensions: 1320x 990 x 35mm
(51.97x38.98x1.38 inch)
Weight: 14.0 kg (31.08 lbs)
Solar Cells: 72cells in series(6 x 12)
Construction: High-transmission low-iron tempered
Glass, EVA, TPT/TPE
Frame: Anodized aluminum is mainly for improving corrosion resistance. Color: silver


Output
Cable LAPP(4 mm2)
Lengths 900mm(-)  and 900mm(+)
Connector MC Plug Type IV



Module Warranty:
25-year limited warranty of 80% power output;
10-year limited warranty of 90% power output;
5-year limited warranty of materials and workmanship
