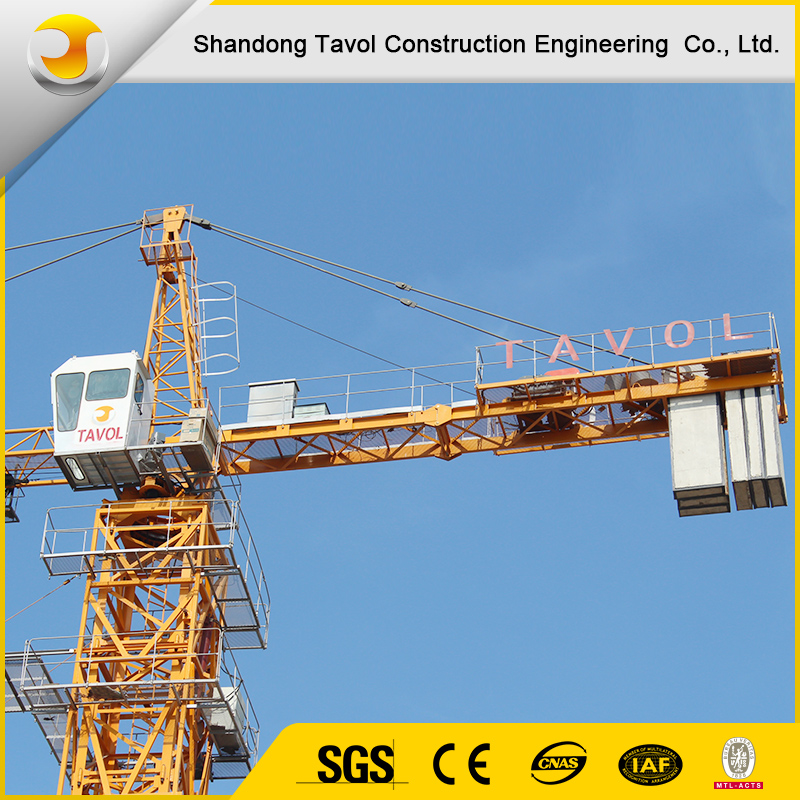

QTZ315 (7040) crane tower in Bangladesh





 Tower crane equipped with fixed Tower body and piece-type tower body forms, there are lots of specification and models for users' selection, beautiful in appearance, compact in structure, complete in safety facilities, Stable and reliable in quality, performance leading in the country, products Occupy a ready market in the country and exporting in batches. They can Widely apply to high-rise hotel, resident houses, industry buildings, Large-span factory and so on.

>>>Featuer:

1.    It has ultra long arm and large coverage area.

2.   the standard segment section is wide. Rigidity is good. Complete machine is stable and swings slightly when craning.

3.    the standard segment principal branch is big.

4.    the electrical system uses domestic high quality or importing parts. Its performance is stable and reliable.

5.    the standard segment, drawbar, top-bottom turntable and other major components is welded by CO2 which penetrates deeply and deforms smally.

6.    the slewing mechanism adopts winding motor which starts smoothly and reliably and places conveniently and efficiently.

7.    Hoisting mechanism with good performance in speeding, lifting and declining smoothly.



>>>Specification:



Series	QTZ160
Standard Model	7040
Max. Lift Load	16t
Tip Load	4t
Free Standing Height	51.5m
Max. Anchorage Height	186m
Jib Length	70m
Mast size	2×2×2.5m
Lift Mechanism	Lifting Speed	(a=2)66/49.5/4-33 m/min (a=4)33/24.7/2-16.5 m/min
	Lift motor	55kw
	Wire rope diameter	20mm
Trolley Mechanism	Trolley speed	0-70 m/min
	Trolley Motor	7.5kw
Slewing Mechanism	Slewing speed	0-0.6r/min
	Slew Motor	120n.M*2units
Jacking Mechanism	Jack climbing speed	0.4m/min
	Jack climbing motor	11kw
Power	380V/50Hz/3P
Luxury Operate Cabin, Schneider Electric Parts

>>>Safety:

1) Explosion-proof lock Valve to avoid a sudden drop if emergency occurs.
2) the safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the Hydraulic Scissor lifting Table runs more smoothly and steadily.
4) the limit switch system helps the Lifting machine Hydraulic Scissor Lifting table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric Components are CE certified.
6) All the Lifting machine Hydraulic Scissor lifting tables are Passed 1.2 times loading test before leaving factory.

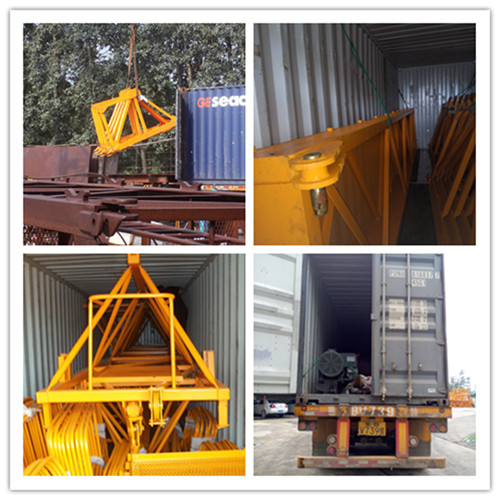

>>>Packaging and Delivery

Package: naked package and wooden package for transportation.40HC Container

Shipping: 30days after advance payment



>>>Our Service

2- Providing free quick-wear part.

3- Low charge for continue maintenance when warranty is expired.

4- Exclusive engineer support at any time.

5- We can provide free training to end-users

6- OEM service is available.

7-We can provide on-site service in some Countries and areas where we have overseas office or agents.
