| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1860 *1500*2190mm |
| Weight: | 890 Kg |
| Model Number: | BM-A |
| Brand Name: | LM |
| Place of Origin: | China (Mainland) |
| Power: | 5.5KW |
| Voltage: | 380V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Glass |
| Packaging Type: | Belt,Bottles |
| Application: | Apparel,Beverage,Machinery & Hardware |
| Condition: | New |
| Package Height Max: | 400 Mm |
Quick Details
Specifications

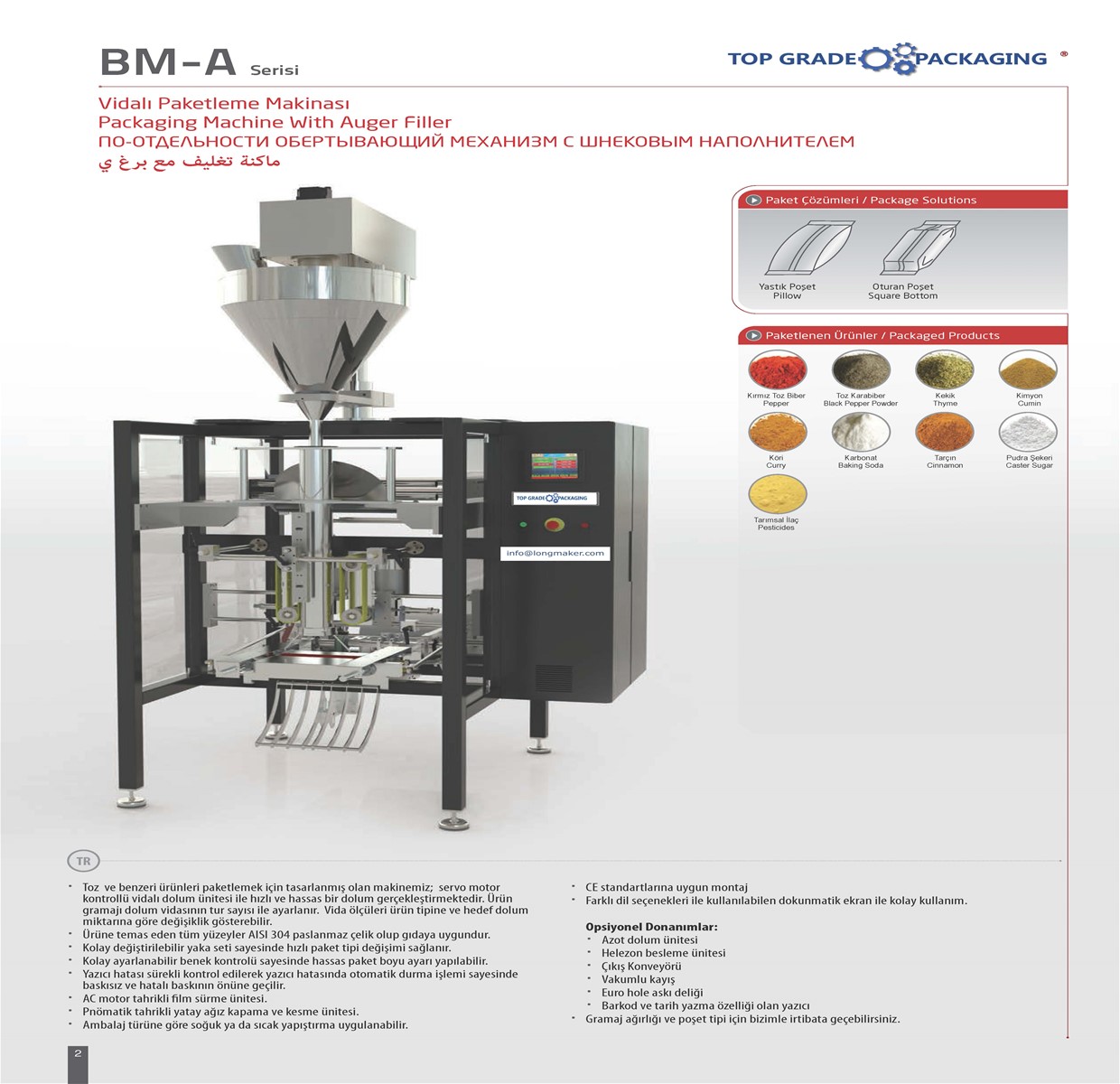

BM-A SERIES

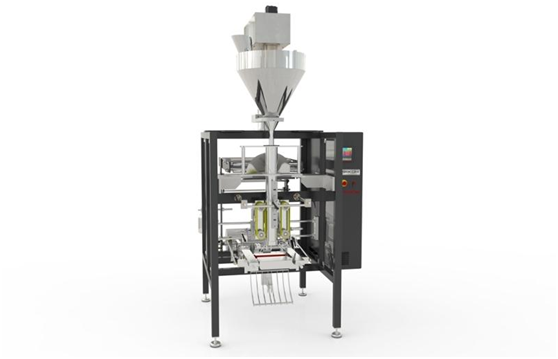

Packaging Machine with Auger Filler
DESCRIPTION
the machine is
Designed for powder and similar fine products. the target weight of each
Filling is
Controlled with fast and accurate servo driven specific auger (worm screw).
the auger type and diameter changes with respect to product type and target
Weight.
All surfaces touching to products are AISI 304 stainless steel.
Easy dismountable collar set design.
Package length should be controlled by print mark or feeding duration.
Printer state is checked continiously.
Wrapping material is driven by AC motors.
Pneumatic driven horizontal sealing and cutting.
Impulse or heat sealing units for different type of wrapping materials.
Suitable for CE standarts.

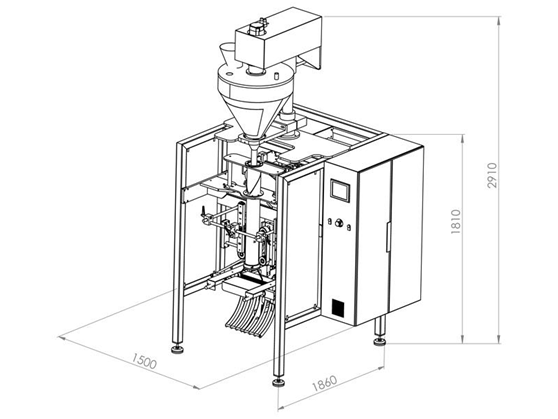

Product features
Width |
1500 Mm |
Lenght |
1860 Mm |
Height |
2190 Mm |
Net Weight |
890 Kg |
Package Height Max |
400 Mm |
Package Width Max |
200 Mm |
Power Consumption |
5,5 Kw |
