| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 2145*2100*3720mm |
| Weight: | 500KG |
| Model Number: | BM-W |
| Brand Name: | LM |
| Place of Origin: | China (Mainland) |
| Power: | 5.5 Kw |
| Voltage: | 380V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Metal |
| Packaging Type: | Bags,Foil |
| Application: | Apparel |
| Condition: | New |
| Air Consumption: | 150 Lt/ Minute |
Quick Details
Specifications

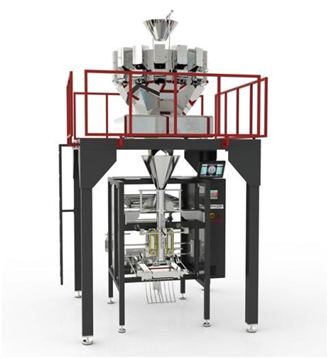

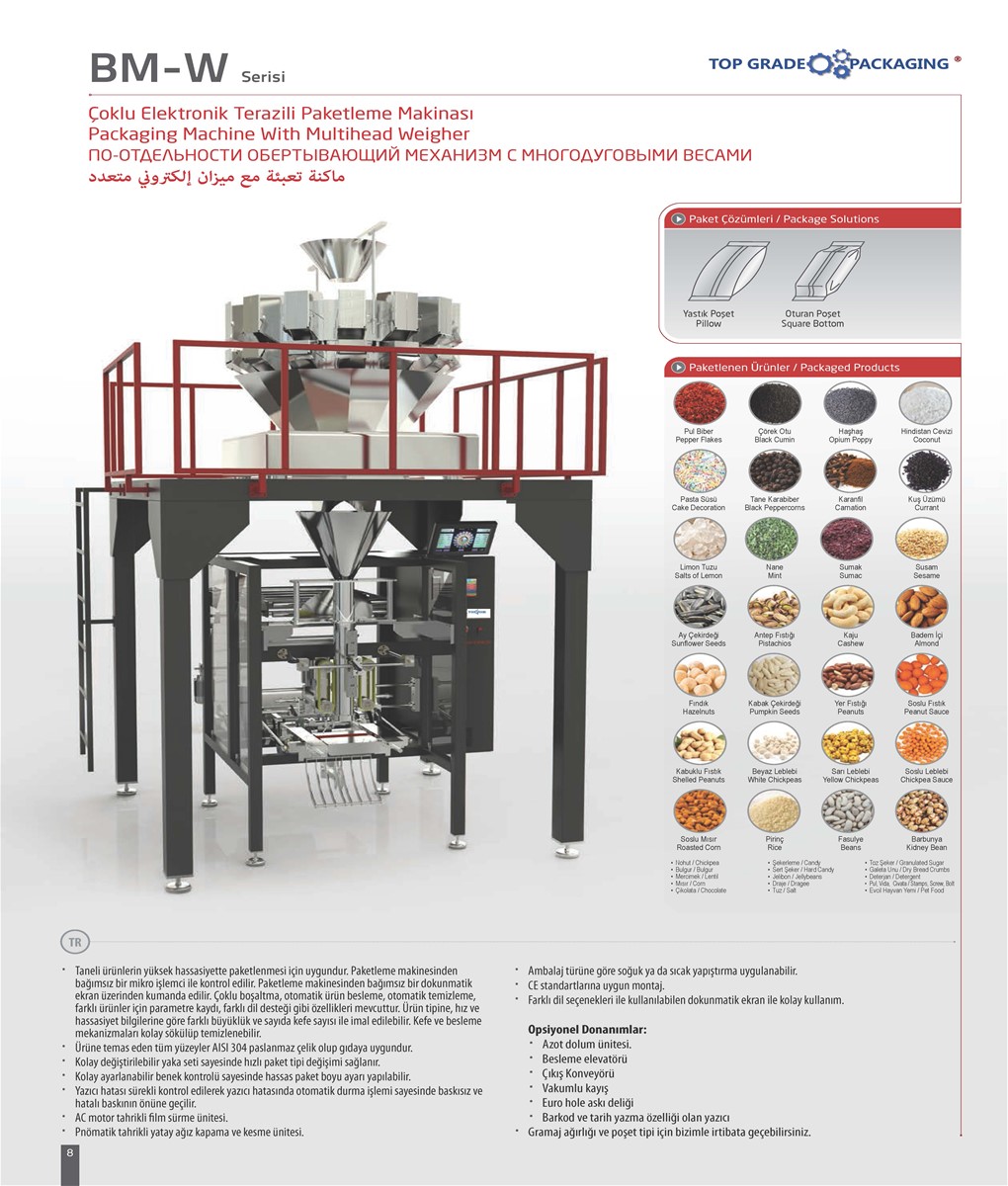

BM-W SERIES
Packaging Machine with Multihead Weigher
DESCRIPTION
Suitable for
Granule type of products. the weighing unit iscontrolled by a seperate
Microprocessor and touch screen.Supports many usefull functions such as multi
Dumping,automatic product conveyor control, self cleaning,reciperecord for
Different products, different language and etc. Different amount of weighing
Buckets in different dimensions should be provided with respect to type of
Product. Parts touching to products are easy to dismount and cleaning.
All surfaces touching to products are AISI 304 stainless steel.
Easy dismountable collar set design.
Package length should be controlled by print mark or feeding duration.
Printer state is checked continiously.
Wrapping material is driven by AC motors.
Pneumatic driven horizontal sealing and cutting.
Impulse or heat sealing units for different type of wrapping materials.
Suitable for CE standarts.
7 inch touch screen wtih several languages.
Product features

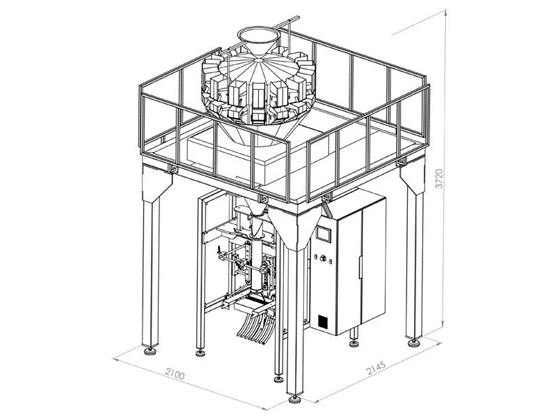

Width |
2100 Mm |
Lenght |
2145 Mm |
Height |
3720 Mm |
Weight |
500 Kg |
Package Height Max |
400 Mm |
Package Width Max |
200 Mm |
Film Bobbin Diameter Max: |
320 Mm |
Film Bobbin Width Max |
480 Mm |
Power Consumption |
5.5 Kw |
Working Voltage |
380V 3 Faz / Phase 50 Hz |
Air Consumption |
150 Lt/ Minute |
Air Pressure (Min.) |
6 Bar |
