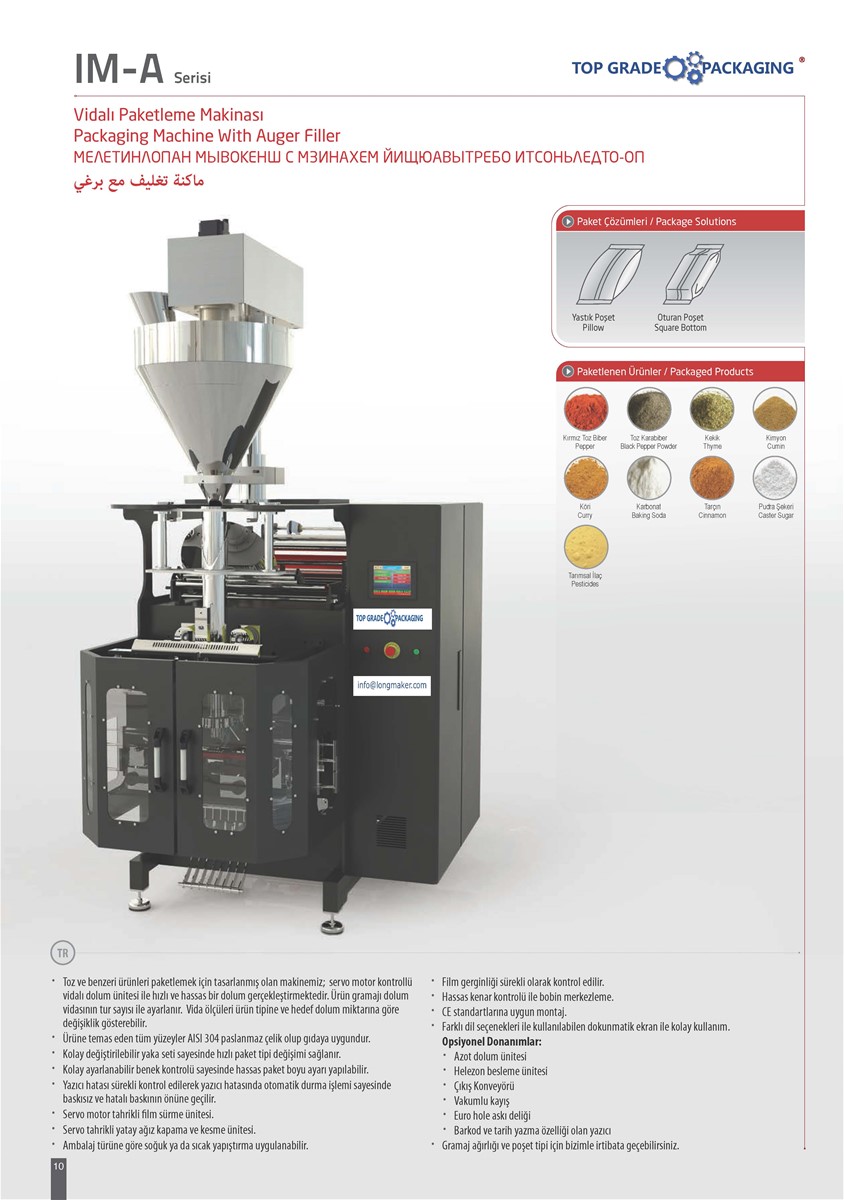

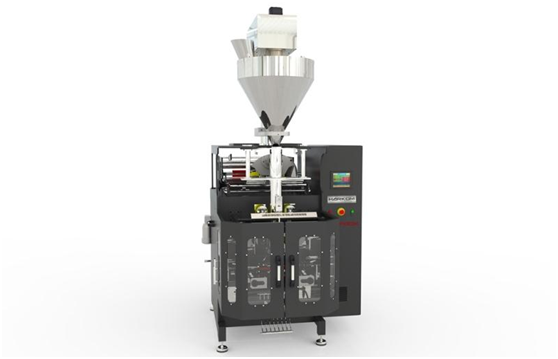

IM-A SERIES Packaging Machine with Auger Filler

DESCRIPTION

the machine is Designed for powder and similar fine products. the target weight of each Filling is controlledwith fast and accurate servo driven specific auger (wormscrew).
the auger type and diameter changes with respect to product type and target Weight. ·
All surfaces touching to products are AISI 304 stainless steel. ·
Easy dismountable collar set design. · Package length should be controlled by Print mark or feeding duration.
Printer state is checked continously. ·
Wrapping material is feed by Servo motors. ·
Servo Motor Controlled Horizontal sealing and cutting. ·
Impulse or heat sealing units for different type of wrapping materials.
Wrapping material tension is controlled continously. · Autamic lateral Adjustment of wrappin material. ·
Suitable for CE standarts. ·
7 inch touch screen wtih several languages.

Product features

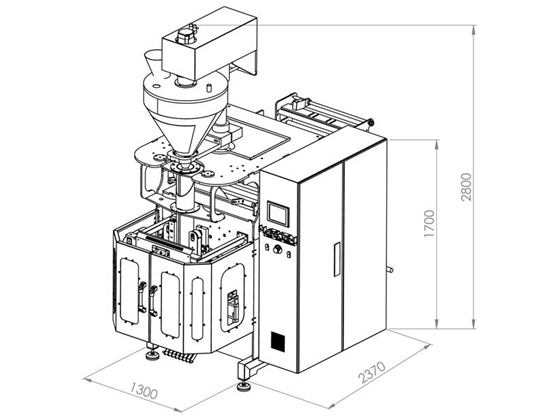

Width	1300 Mm
Length	2370 Mm
Height	2800 Mm
Weight	1120 Kg
Package Height Max	400 Mm
Package Width Max	200 Mm
Film Bobbin Diameter Max	400 Mm
Film Bobbin Width Max	480 Mm
Power Consumption	5.5 Kw
Working Voltage	380V 3 Faz / Phase 50 Hz
Air Consumption	160 Lt/ Minute
Air Pressure (Min.)	6 Bar
