1.Brief Introduction:



Condition:	New	Place of Origin:	Fujian, China (Mainland)
Model Number:	MGM975	Type:	Powered Pallet Truck, granite& marble block handler
Brand Name:	MGMA	Power Source:	Diesel Engine
Rated Loading Capacity:	28 tons	Max. Lifting Height:	3500mm
Engine:	Steyr (Sinotruk)	Moving type:	Wheeled
Overall Dimensions (L*W*H):	9100*3145*3700mm	Shipping:	Container or RO-RO. by sea, truck
Certification:	ISO, SGS	after-sales Service:	1 Year or 2000 working hours



2.Techincal parameters:

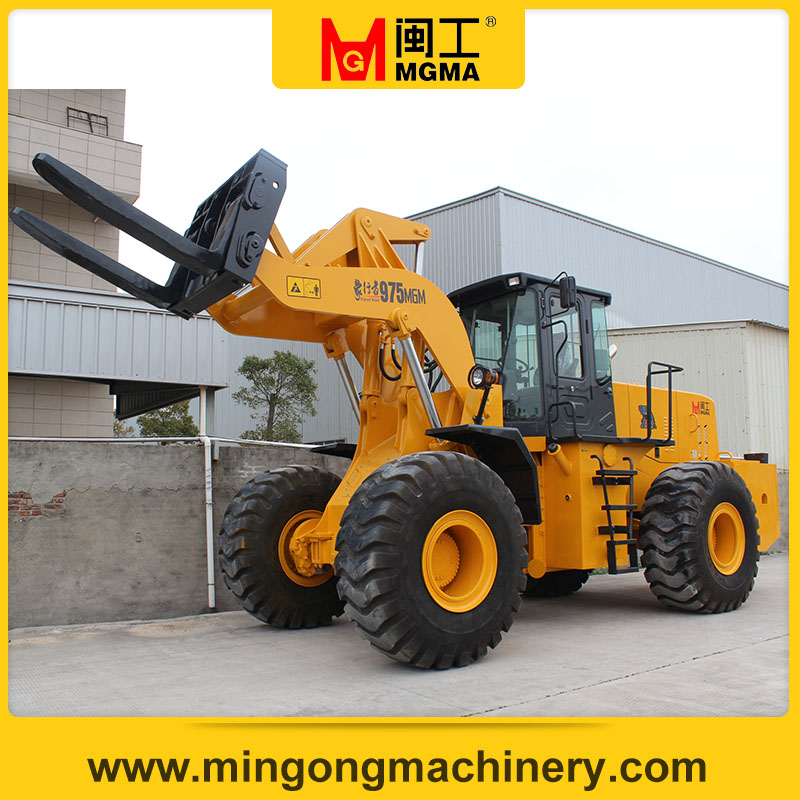

the Specification of Stone block handler MGM975 for28 tons

Item	Specification
Operation weight	29500kg
Rated load	28000kg
Max. Lifting height	3100mm
Overall dimension
Overall length	9100mm
Overall width	3145mm
Overall height	3700mm
Rated power	175kw
Min. Ground clearance	400mm
Drive type	4WD
Fuel tank	300L
Hydraulic oil tank	300L
Drive speed
Forward(1/2)	11.5/35 km/h
Reserve	16 km/h
Max.Gradeability	20
Turning angle	35



3.Performance features:

Features & Advantages



Frame the frame is specially enlarged to withstand fork loading operations of harsh stone mining. Enabling longer service life through using more material than co-loader to build up the strongest frame in China. New reasonable design of the horizontal structure, increase the structural strength to load heavy safely and efficiently, meet requirements of capacity 28 tons.

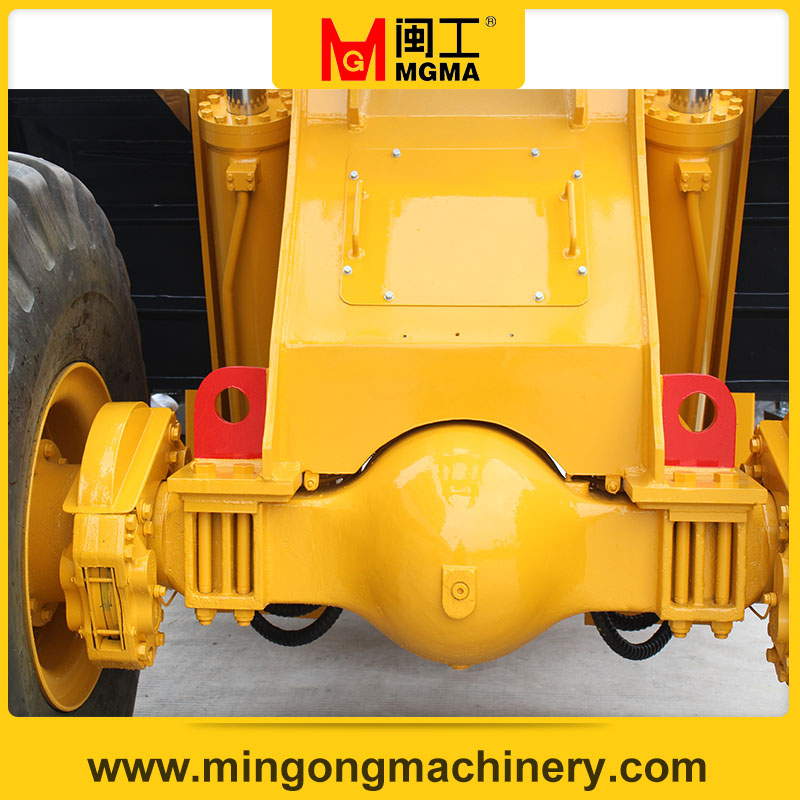

Driving Axle Adopt enlarged driving axle to improve the load capacity. Each side of axle can bear 90 tons weight.



Hydraulics Adjust Dual Pump Converging Hydraulic System makes operations more efficient meanwhile reduced fuel consumption.



Braking system Automatic emergency brake system works when the pressure is lower than normal level, it's more secure in harsh mining conditions. MICO hydraulic break system imports from USA with automatic accumulator can support 10 times break without power in an emergency. It can increase the safety of operator and machine.
