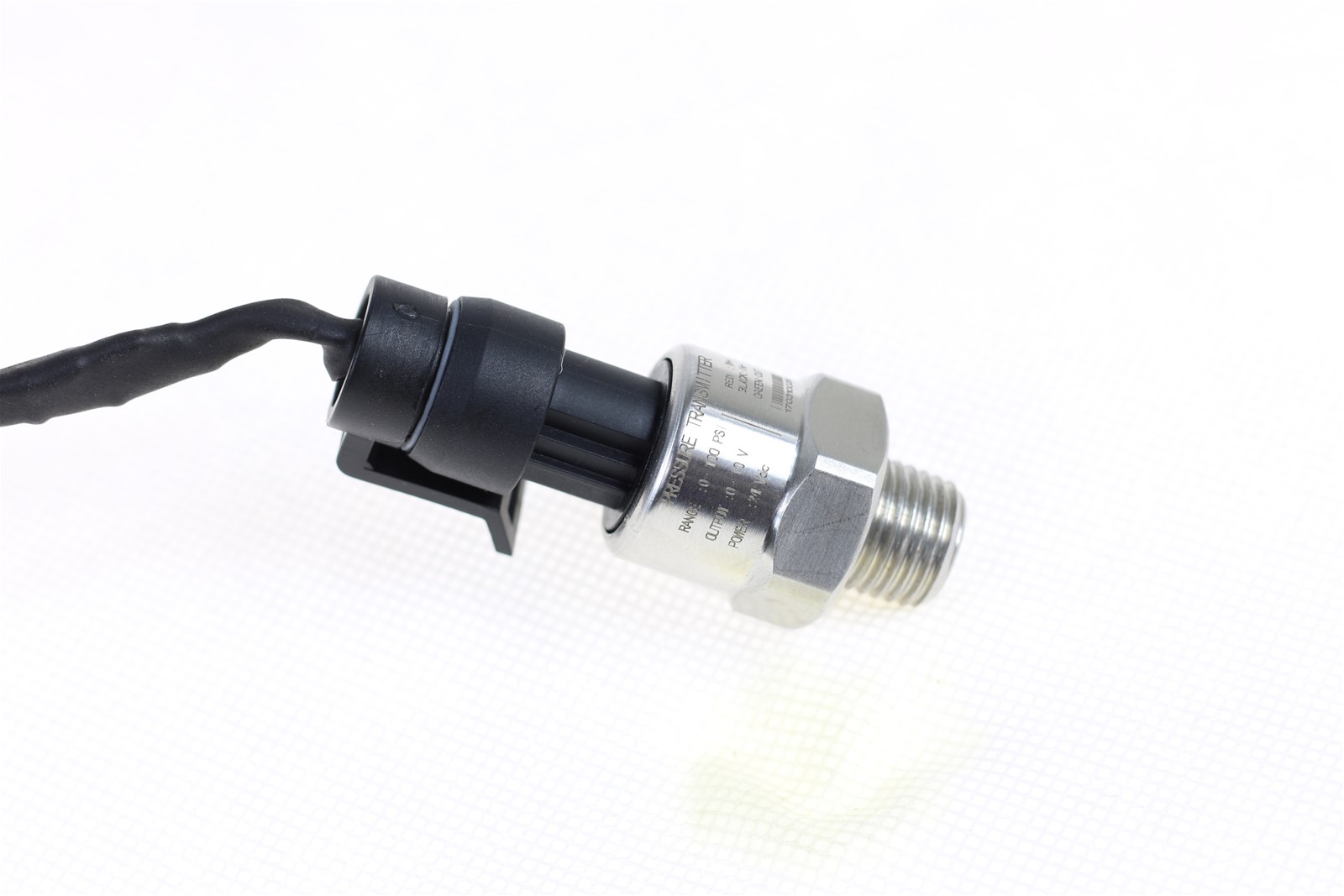

Description

this series adopts diffused silicon or ceramic piezoresistive sensor chip, with compact
Configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical
Performance and long-term stability make it the idea choice for the air-condition and compressor
Pressure measuring and controlling. this series can replace the similar type of other products, and it can
Meet the requirement of various compressors and refrigeration equipments.

TEchnical parameters :

 Range: 0~30mpa
Accuracy: 0.25%FS, 0.5%FS;1%FS
Linear: 0.02%FS
Reliability: 0.05%FS
Output: 0.5-4.5V;0-5V;1-5V;4-20mA,
Input Voltage: 24(5-36V)DC
Operation Temperature: -10~125
Compensation Temperature: -10~70(Standard compensation)
over Pressure: 150%FS
Housing material: 316L SS
Electric Connection: Packard connector
Process Connection: Z1/4, 1/4NPT, 1/8NPT (Optional)

Features:

 Superior long term stability
 Temperature compensated over wide range
 Low power consumption
 Excellent repeatability/Hysteresis
 Special design for customer
 Many OEM options

Applications:

 Laboratory test apparatus
 Agricultural chemical equipment
 Refrigeration and HVAC systems
 Hydraulic system
 Gas tank pressure monitoring
 Coolant pressure
