| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO, SGS |
| Overall Dimensions: | 8400mm*2950*3480mm |
| Fork Width: | 200mm |
| Fork Length: | 1500mm |
| Max. Lifting Height: | 3500mm |
| Rated Loading Capacity: | 18000KG |
| Power Souce: | Diesel Engine |
| Type: | Powered Pallet Truck |
| Model Number: | MGM957 |
| Brand Name: | MINGONG (MGMA) |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications
Basic Information:
Condition: |
New |
Place of Origin: |
Fujian, China (Mainland) |
Model Number: |
MGM957 |
Type: |
Powered Pallet Truck, granite block handler |
Brand Name: |
MGMA |
Power Source: |
Diesel Engine |
Rated Loading Capacity: |
18 tons |
Max. Lifting Height: |
3500mm |
Engine: |
Steyr( Sinotruk) |
Moving type: |
Wheeled |
Overall Dimensions (L*W*H): |
8400*2950* 3480 |
Shipping: |
Container or RO-RO. by sea, truck |
Certification: |
ISO, SGS |
after-sales Service: |
1 Year or 2000 working hours |
Fork Length: 1500mm Width:200mm Height:115mm
8400mm*2950*3480mm
Packaging & Delivery
Packaging Details: 1 unit/ 40'HQ container
or RO-RO (suggest)
Delivery Detail: Shipped in 7 workdays after payment
Features & Advantages
Frame the frame is specially enlarged to withstand fork loading operations of harsh stone mining. Enabling longer service life through using more material than co-loader to build up the strongest frame in China.the horizontal hinge structure makes the structure accessories a whole unit.
Driving Axle the increased driving Q Bridge makes the capacity of load more reliable.
Hydraulics Adjust Dual Pump Converging Hydraulic System makes operations more efficient meanwhile reduced fuel consumption.
Braking system Automatic emergency brake system works when the pressure is lower than normal level, it's more secure in harsh mining conditions.
the enlarged size of wheel hub and gear bearings improves the performance of load capacity.
the double-pump confluence hydraulic system featured with high efficiency and saving energy ensures stable operation and reduces fuel consumption.

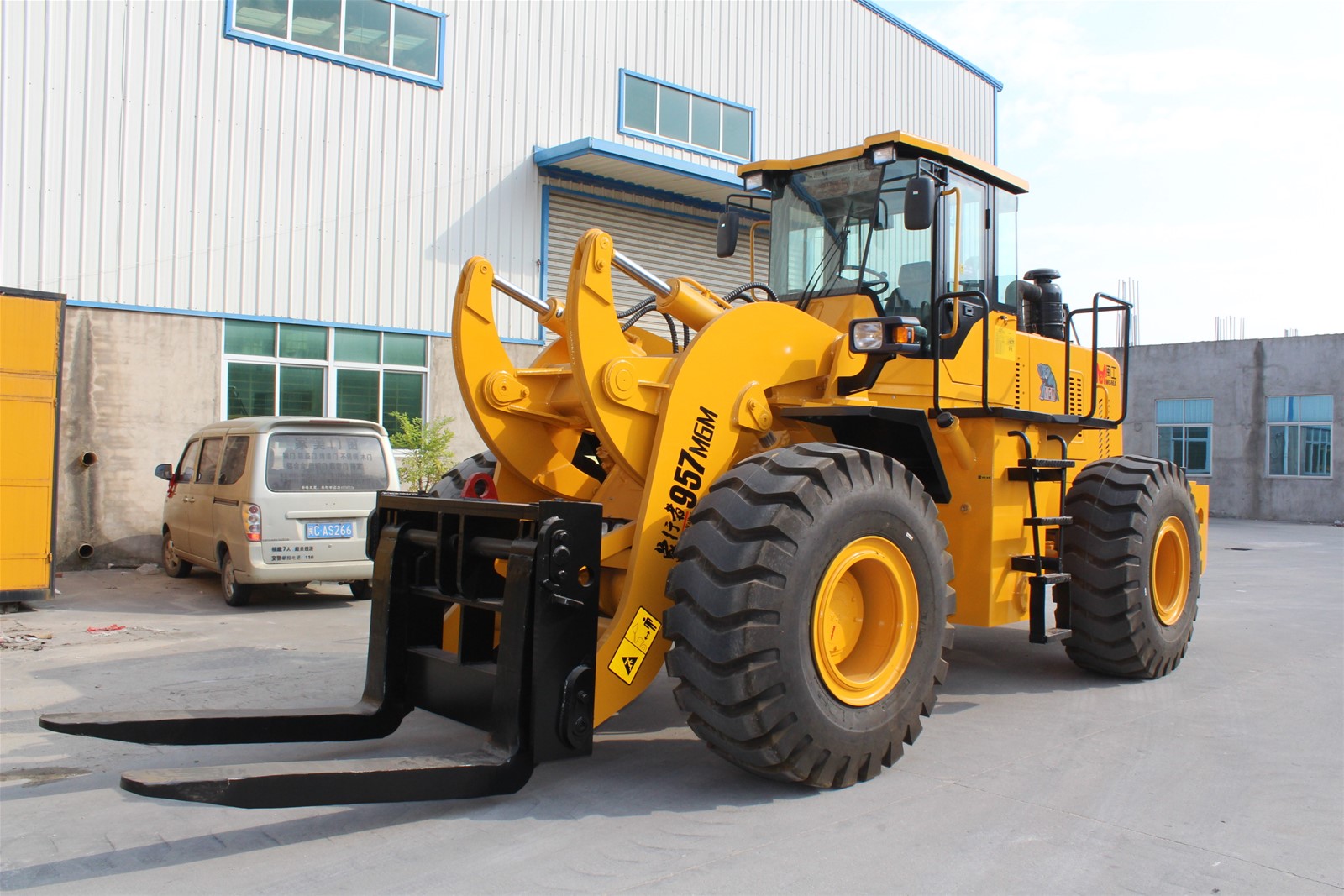

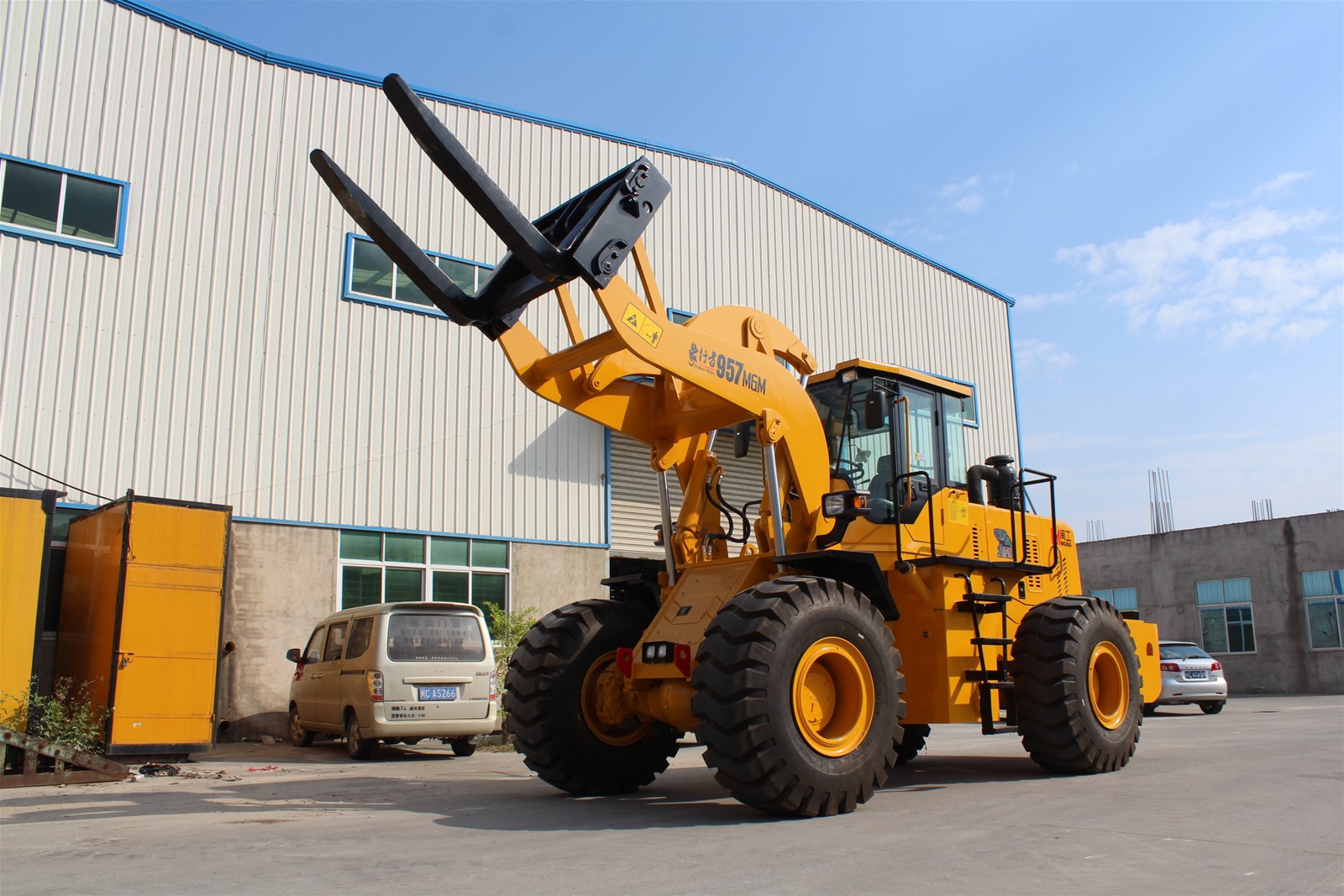

the Specification of Stone block handler MGM957 for 18-21 tons
Item |
Specification |
Rated load |
18000kg |
Max. Lifting height |
350mm |
Overall dimension | |
Overall length |
8400mm |
Overall width |
2950mm |
Overall height |
3480mm |
Rated power |
162kw |
Wheelbase |
3600mm |
Min. Ground clearance |
460mm |
Drive type |
4WD |
Fuel tank |
300L |
Hydraulic oil tank |
300L |
Drive speed | |
Forward(1/2) |
11.5/35 km/h |
Reserve |
16 km/h |
Max.Gradeability |
20 |
Turning angle |
35 |
Operation weight |
21600kg |
