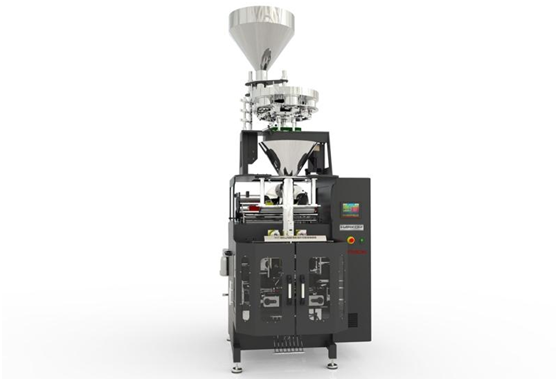

IM-V SERIES Packaging Machine with Volumetric Filler

DESCRIPTION

Volumetric Filling system is suitable for products which are able to free falling and Homogeneous in density.the Weight of each filling is controlled by adjusting the dimensions of filling cups. Different cups with adjustable dimension should Be used for different type of products.the sensitivity of target weight is Equal to sensitivity of product density.
All surfaces touching to products are AISI 304 stainless steel.
Easy dismountable collar set design.
Package length should be controlled by print mark or feeding duration.
Printer state is checked continuously.
the wrapping material is feed by Servo motors.
Servo Motor Controlled Horizontal sealing and cutting.
Impulse or heat sealing units for different type of wrapping materials.
Wrapping material tension is controlled continuously.
Automatic lateral adjustment of wrapping material.
Suitable for CE standards.
7 inch touch screen wtih several languages.

Product features

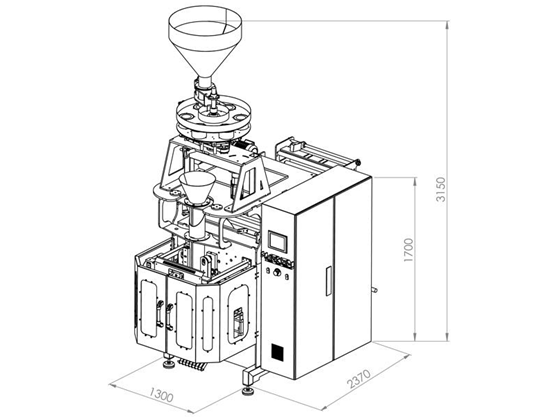

Width	1300 Mm
Length	2370 Mm
Height	3510 Mm
Weight	900 Kg
	400 Mm
Package Width Max	200 Mm
Film Bobbin Diameter Max	400 Mm
Film Bobbin Width Max	480 Mm
Power Consumption	5.5 Kw
Working Voltage	380V 3 Faz / Phase 50 Hz
Air Consumption	160 Lt/ Minute
Air Pressure (Min.)	6 Bar
