| Voltage: | 220V/110V, single phase, 50/60Hz |
|---|---|
| Model Number: | Dagger I |
| Brand Name: | TopTech |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Position accuracy: | 0.2mm |
| Repeatability: | 0.2mm |
| Cutting modes: | Plasma or flame |
| Cutting software: | IBE, FastCAM, MTC |
| Cutting material: | Carbon steel, stainless steel, copper alloy, nickel alloy, etc. |
| Cutting table (optional): | Dry cutting table, water cutting table |
| Plasma power sources (optional): | Hypertherm, Victor, Kjellberg, TopTech JCH series plasma power sources |
Quick Details
Specifications
Dagger I
Portable CNC cutting machine series --Dagger I

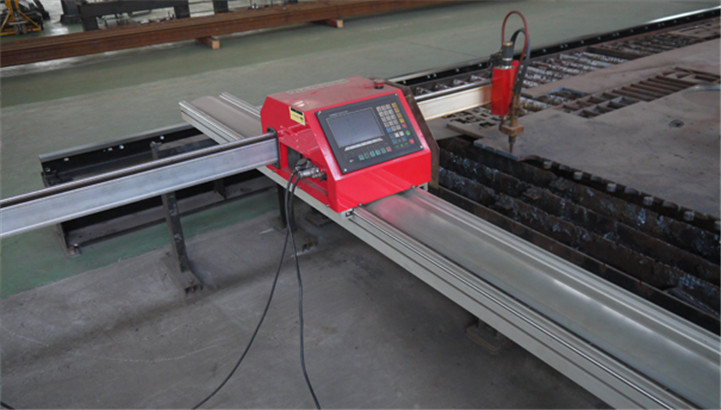

Cantilever type portable CNC cutting machine
Working with flame/plasma cutting modes.
We are the first company to use anti-collision torch holder on portable series CNC cutting machines.
to make our portable series CNC cutting machine have more ability to protect your plasma torches.
to make our portable series CNC cutting machine have more ability to protect your plasma torches.
RateTech Dagger I, portable cantilever type CNC cutting machine.
Main Technical Parameters of Dagger I
| Machine type | Dagger I |
| Input voltage | 220V/110V, single phase, 50/60Hz |
| Cutting thickness range | Plasma: depend on plasma power sources |
| Flame:5-150mm | |
| Effective cutting range | 1300*2500mm ≥ 4'*8' Other size is optional |
| Position accuracy | 0.2mm |
| Repeatability | 0.2mm |
| Cutting modes | Plasma or flame |
| Cutting speed | Plasma: 0-6000mm/min |
| Flame: 0-600mm/min | |
| Cutting software | IBE, FastCAM, MTC |
| Torch height control system | Plasma THC Plasma & flame THC (optional) |
| Cutting material | Carbon steel, stainless steel, copper alloy, nickel alloy, etc. |
| Cutting table (optional) | Dry cutting table, water cutting table |
| Plasma power sources (optional) | Hypertherm, Victor, Kjellberg, TopTech JCH series plasma power sources |
Company Introduction
Beijing TopTech Technology Co., Ltd. Was Founded in Beijing, the capital and main transportation city in China.
with more than 10 years experience in Welding and cutting industry, we had R&D our advanced welding and cutting Equipment.
Mature teams, included sales team, Marketing team, production team and after-service team, supply professional Service for customers.
Strictly follow ISO 9001:2000 world quality Management system.
Beijing TopTech Technology Co., Ltd. Products include plasma cutting machine, laser cutting machine, CNC cutting Machine, flame cutting machine, portable cutting machine, gantry cutting Machine, laser carving machine, high definition plasmaCutting machine, bevel Cutting machine,Plasma cutter.
