| Model Number: | 170406 |
|---|---|
| Brand Name: | HANZI |
| Place of Origin: | China (Mainland) |
| Dimensions (L x W x H) (mm): | Customer's Drawing |
| Material: | Q235 |

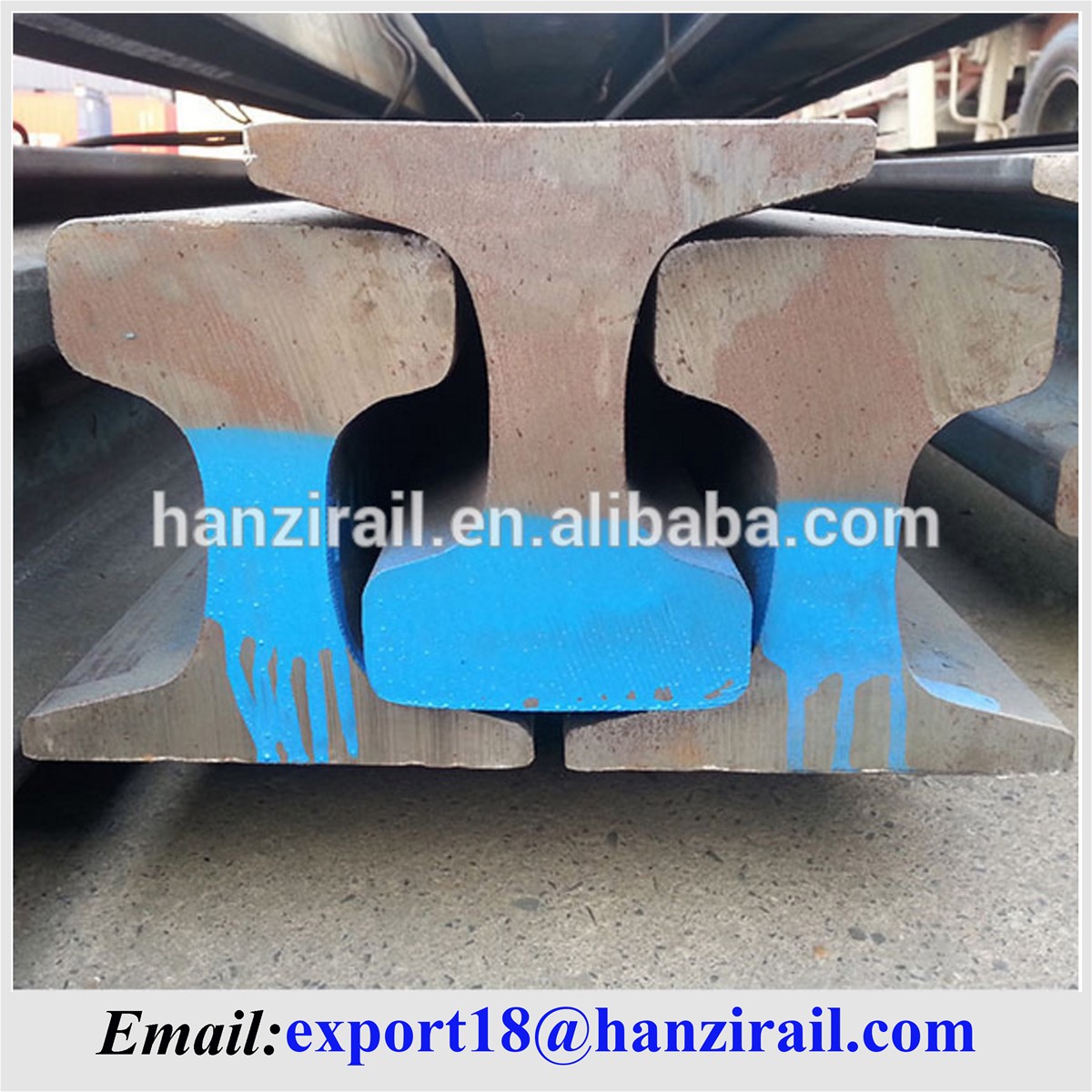

| Type: | Steel Rail |
| Product Name: | Steel Rail |
Quick Details
Specifications
Railway Steel Rails
Specification
| BS Standard Steel Rail | |||||||
| SIZE | DIMENSION(MM) | WEIGHT (KG/M) | MATERIAL | LENGTH (M/PCS) | |||
| A | B | C | t | ||||
| 50O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |
| 60A | 57.15 | 114.3 | 109.54 | 11.11 | 30.618 | 900A | |
| 60R | 57.15 | 114.3 | 109.54 | 11.11 | 29.822 | 700 | |
| 70A | 60.32 | 123.82 | 111.12 | 12.3 | 34.807 | 900A | 8-25 |
| 75A | 61.91 | 128.59 | 114.3 | 12.7 | 37.455 | ||
| 75R | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | ||
| 80A | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | ||
| 80R | 63.5 | 133.35 | 127 | 13.49 | 39.674 | ||
| 90A | 66.67 | 142.88 | 127 | 13.89 | 45.099 | ||
| 100A | 69.85 | 152.4 | 133.35 | 15.08 | 50.182 | ||
| 113A | 69.85 | 158.75 | 139.7 | 20 | 56.398 | ||
