| Type: | LCM |
|---|---|
| Brand Name: | CNK |
| Interface Type: | SPI |
| Resolution: | 0602 |
| application: | LCD |
| Model Number: | CNKD0602-16042A6 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
CNK Electronics CO.,LTD.
Model Number:CNKD0602-16042A6

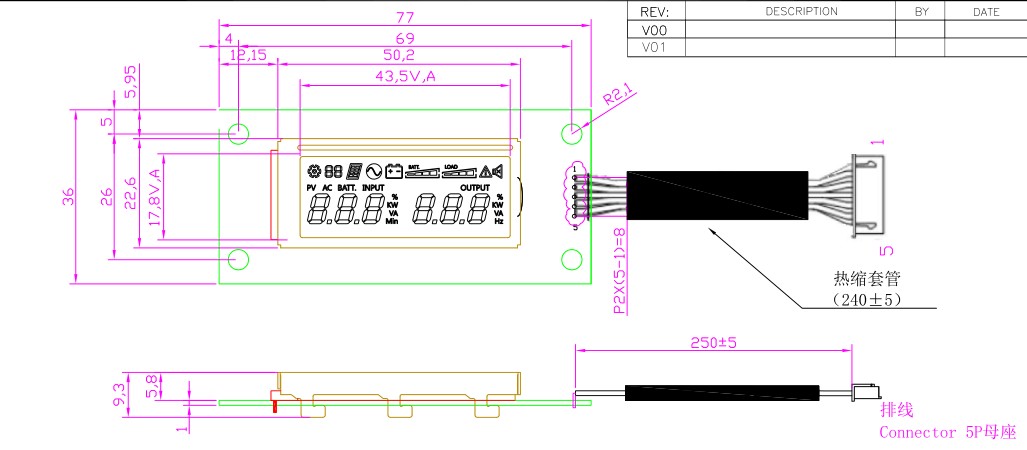

Module size(WxHxT):77x36x9.3mm
Display view area(WxH):43.5x16.8mm
LCD type:HTN/Blue/Negative/Transmissive
View angle:12 O'clock
Driver IC:HT1621
Backlight Driver type:White
Weight:TBD
Operating Temperature:-20C to 70C
Storage Temperature:-30C to 80C
Drive Method:1/4 Duty,1/3 Bias
Connector:Zebra
Operating Voltage:LCM,5.0V
Model Number:CNKD0602-16042A6
Module size(WxHxT):77x36x9.3mm
Display view area(WxH):43.5x16.8mm
LCD type:HTN/Blue/Negative/Transmissive
View angle:12 O'clock
Driver IC:HT1621
Backlight Driver type:White
Weight:TBD
Operating Temperature:-20C to 70C
Storage Temperature:-30C to 80C
Drive Method:1/4 Duty,1/3 Bias
Connector:Zebra
Operating Voltage:LCM,5.0V
