| Shape: | concave-convex |
|---|---|
| Structure: | concave-convex |
| Usage: | Optical |
| Material: | Glass |
| Model Number: | KL-HB78-18 |
| Brand Name: | Kinglux |
| Place of Origin: | China (Mainland) |
| Refractive Index: | 1.474 |
| Light Transmittance: | 94%, after coating can reach 100% |
| Working Temperature: | from -50degree to 550degree |
Quick Details
Specifications

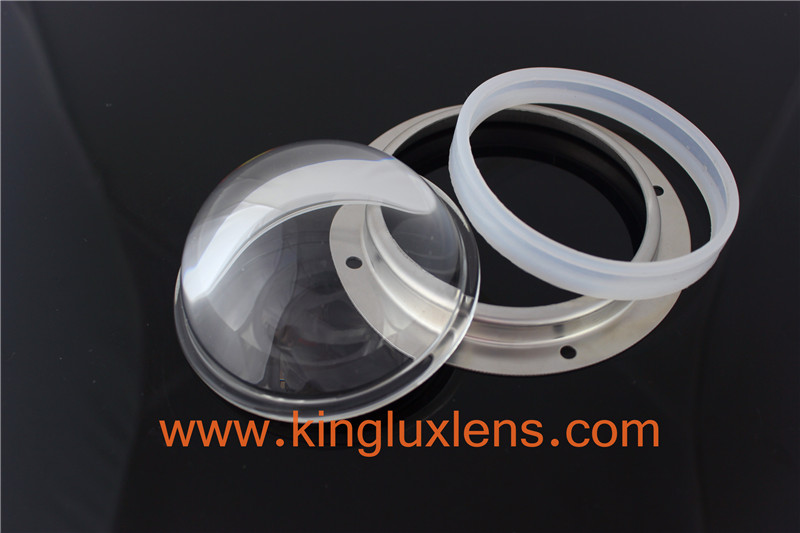

Dia 78mm Outdoor LED Industrial Light Module LED Glass Lens
| Model | KL-HB78-18 |
| Beam angle | 100 degree |
| Material | High borosilicate glass 3.3 |
| Refractive Index | 1.474 |
| Light Transmittance | 94%, after coating can reach 100% |
| Working Temperature | from -50degree to 550degree |
| Color | Transparent |
| Tensile Strength | 40- 120Nmm - 2 |
| Certificates | ISO9001/RoHS/SGS |
| Performance Advantages |
A low inflation rate, high temperature resistant,high strength, High hardness, high light transmittance and high chemical stability
|
| Suitable LED Power |
10w-100w COB LED,using LED light-emitting area within 60mm
|
| Accessories | with stainless steel 304 holder and gasket,easy installation. |
| Dimension |
|
| Application | widely used for 10W-100W LED high bay light,LED down light, the headlight,LED factory Lamp,flashlights,other LED lights.
|
| OEM | YES |
| Other |
*offer free optical technical support. *offer a lifetime warranty for our optical glass lens |
