1.Compact design,folds away when not in use.
2.Easily installed,on site or by a vehicle body builder.
3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360oswivel operating handle.
7.Forged heavy duty swivel hook.
8.125% overload testing before deliver

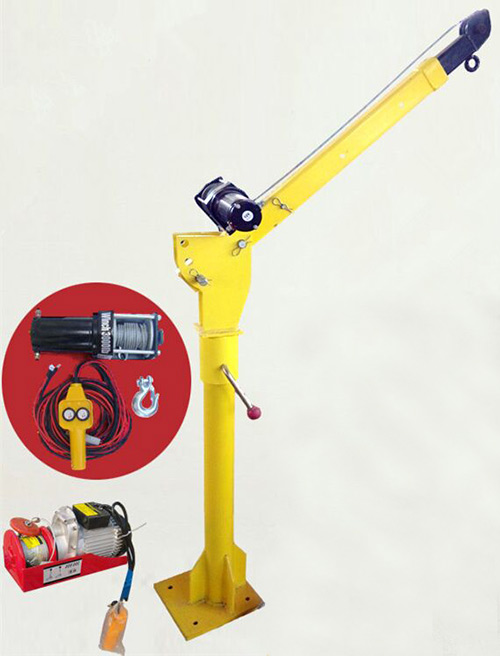

SPECIFICATIONS for MINIATURE VEHICLE-MOUNTED CRANE
Model	HP1000
Single-line lifting capacity	500kgmax
Double-line lifting capacity	800kgmax
Lifting height(based on hook)	1940mm
Maximum range(from the centre of rotation )	1490mm
with the brake rotation(continuous)	360 degree manual
Lifting cable	4.8mm*4.5mm-1pc(single-line lifting)
	4.8mm*5.5mm-1pc(double-line lifting)
No-load line speed	3.6m/min single line
Power requirements	12v/24v DC 125amps
Switch cahble	4.2m
Mounting base	250*250*18mms
Crane weight	58.5kgs
Electric capstan	300LBS
Color	Yellow
