Description:

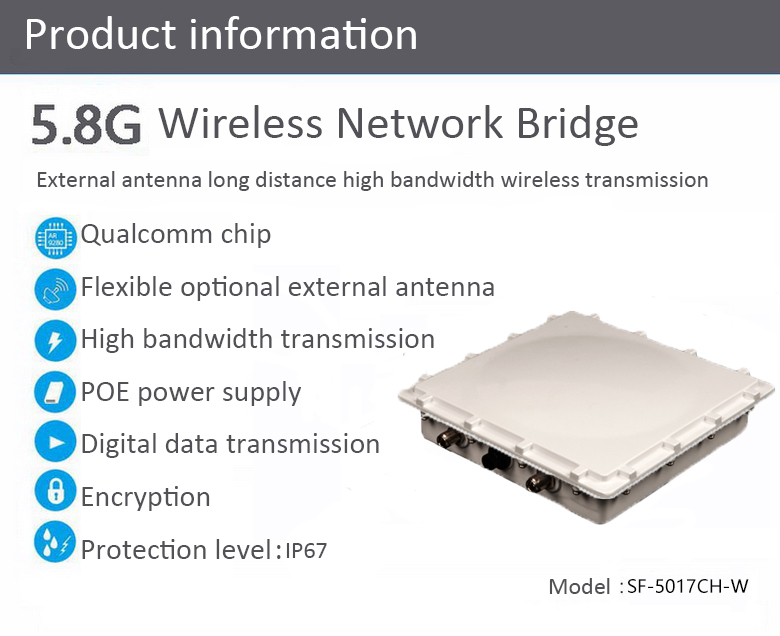

the SF-5017CH-W economical MIMO wireless bridge uses external antenna,Supports the 802.11a / n protocol,the airborne rates can reach 300M. According to a variety of on-site environment can be used with different antennas to achieve different transmission functions. Is an economical 5.8G wireless transmission equipment.

the device works in the 5G band,has rich channel resources,excellent spectrum efficiency, anti-interference ability and advanced priority control, perfectly support for audio and video and network data transmission. with different models of the antenna, you can achieve a variety of different wireless transmission applications. Very suitable for long-range wireless monitoring.

Key features:

L Support IEEE 802.11a/n

L Atheros 560MHz CPU

L High output power to 26dBm(400mw)

L High AP transmission rate at 300Mbps

L High sensitivity receiving

L support antenna signal calibration

L Distance can be adjusted during Long-distance transmission

L Support Poe power

L Waterproof protection design

Details:

Details
CPU	Atheros AR9342 (560MHz)
RAM	64MB DDR2
ROM	8MB
Power supply
Power supply mode	24V PoE
Power consumption	5.5 W
Environment
Temperature	Operating temperature:-20oC to 70oC Storage temperature: -40oC to 90oC
Humidity	Operating temperature: 5% to 95% (Non-condensing) Storage temperature: Max.90% ((Non-condensing)
Wired
Wired network	Double RJ45 ports
Launch power and receiver sensitivity
Launch power	Data transmission rate	5GHz(Summery)
	HT20 MCS0	25dBm
	HT20 MCS7	19dBm
	HT40 MCS0	24dBm
	HT40 MCS7	19dBm
Receiver sensitivity	Data transmission rate	5GHz
	HT20 MCS0	-94dBm
	HT20 MCS7	-77dBm
	HT40 MCS0	-93dBm
	HT40 MCS7	-75dBm
Exterior
Size	270*270*70(mm)
Weight	2kg
