| Model Number: | SF-8600CZ |
|---|---|
| Brand Name: | SF-Tech |
| Place of Origin: | China (Mainland) |
| Size: | 480*260*88(mm) |
| Distance: | 10-20km |
Quick Details
Specifications
Description:

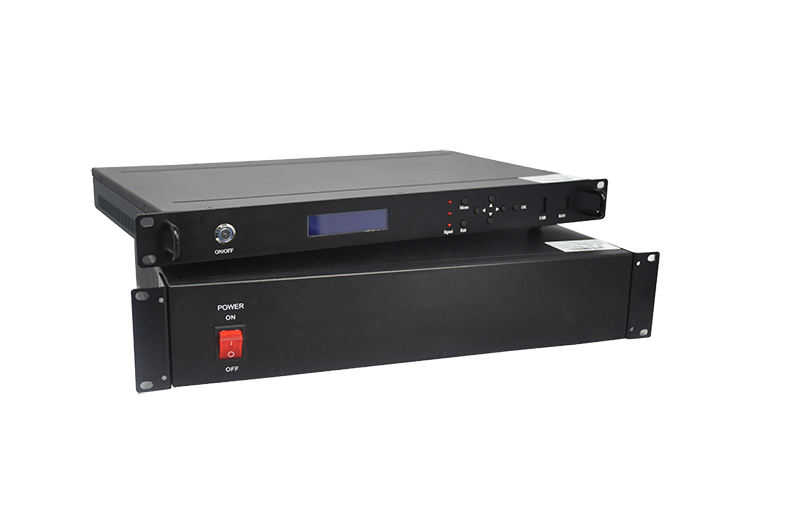

SF-H8600CZ is broadcast HD real-time video transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.
Specification:
Transmitter | |
Modulation |
COFDM |
Power |
AC220V/50Hz ≤2A DC12V 7A(10W) DC24V 10A(20W) |
Consumption |
160W(max) |
Modulation |
QPSK,16QAM,64QAM(Selectable) |
Forward Error Correction |
1/2,2/3,3/4,5/6,7/8(Selectable) |
Guard Interval |
1/32,1/16,1/8,1/4(Selectable) |
Carrier Quantity |
2k |
Frequency Bandwidth |
2/4/8M |
Output Frequency |
325-399MHz,400-500MHz,500-760MHz,760-860MHz,( 1.0-1.4GHz2.3-2.5GHz could be customized) |
AV Interface |
BNC/RCA |
Output Power |
39.5-43.5dBm(10W ,20W) |
Power Flatness |
Full≤2dB,8MHz≤0.5dB |
Shoulder Belt |
40dBm@ -32dB |
Second Harmonic |
≤-43dB |
Input Video |
1Vp-p@75 oHm,PAL |
CBER |
＜2.0E-4 |
Video Compression |
MPEG-2 4:2:0 |
Video Quality |
720*576@8MHz, |
Video Speed |
2-20Mbps |
Working Temperature |
-20℃～+50℃ |
Size |
480*260*88mm(10W 2U Chassis)467*425*132mm(20W 3U Chassis) |
