| Model Number: | SF-8600DB |
|---|---|
| Brand Name: | SF-Tech |
| Place of Origin: | China (Mainland) |

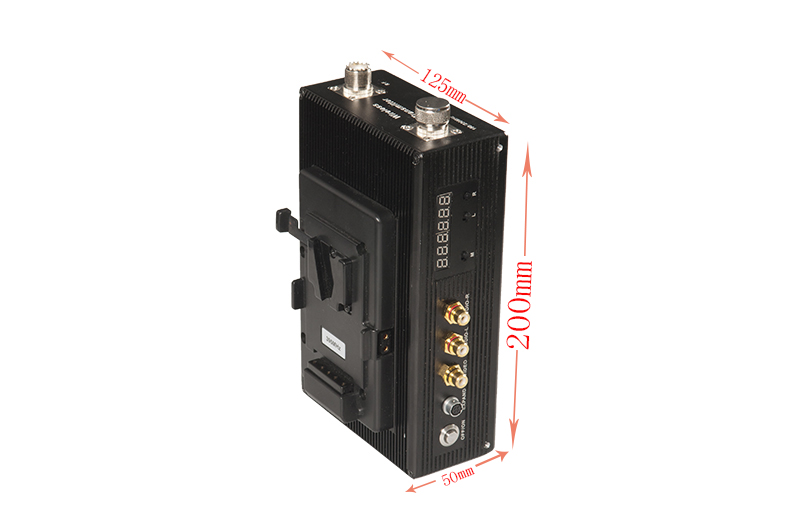

| Size: | 200*125*50(mm) |
| Distance(NLOS): | 2-5km |
Quick Details
Specifications
Description:
SF-H8600DB is mobile wireless HD real-time video transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz) so that it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.
When used with backrest and high-capacity Li battery,it widely used for first responders or military personnel entering hazardous environments
Specification:Transmitter | |
Modulation |
COFDM |
Voltage |
DC9V~DC15V |
Current |
≤2.5A DC12V |
Command Interface |
RS232,8-bit data,1-bit stopping,Baud Rate:19200 |
Encryption |
128-bit encryption |
Constellation |
QPSK(4QAM),16QAM,64QAM |
FEC |
1/2 2/3 3/4 5/6 7/8 |
Guard Interval |
1/32 1/16 1/8 1/4 |
Carrier |
2K |
Frequency Bandwidth |
2/3/4/5/6/7/8M adjustable |
Transmission Stream |
1500kbs~60000kbs adjustable |
Transmission Power |
5W /10W |
Transmission Frequency |
Customized and adjustable(each 100KHz) |
Power Flatness |
≤ 0.2dB within 10MHz |
CNR |
≥-30dB @ 30dBm power output |
Second Harmonic |
≤-45dB |
MER |
32Db |
Input Video |
1Vp-p,75Ω |
Input Audio |
Left and right channels |
AV Interface |
Military aviation plug |
Image Compression Format |
MPEG-2 |
Video Image |
720×576 when over 4M |
Video Format |
NTSC/PAL |
Protection Standard |
Full aluminum chassis, dust-proof, waterproof, corrosion-resistant and shock-proof design |
