| Brand Name: | Golden Berry |
|---|---|
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

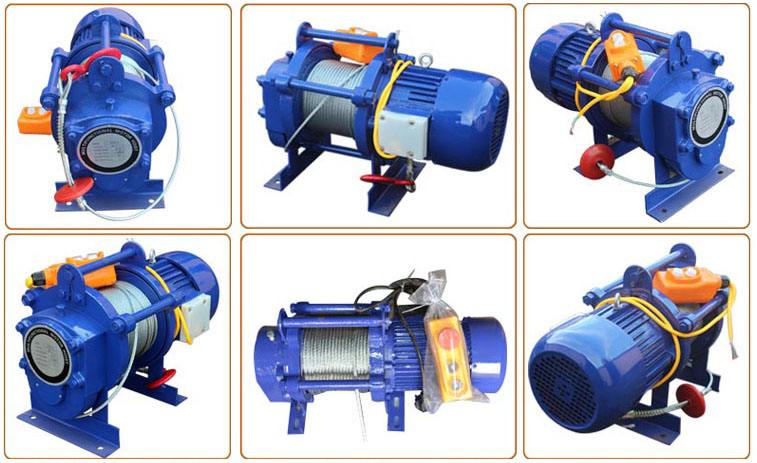

Multi function electric hoist series product,compact design, easy installation, affordable, wide range of applications.
Characteristics:
Fast braking speed, small size, light weight, compact structure, easy to use and convenient maintenance. the main function is the combination of electric hoist and winch.
the rope length is 30 meters for single hanging, 15 meters for doboule hanging, the length can be customized according to the needs of users.
Mini electric hoist is widely applied to residential buildings, hanging ash bricks, digging soil, the freight yard warehouse, shopping malls, restaurants, individual workshops and small mines, for any angle of the shifting, lifting, loading and unloading, is currently the most.
| Model specification | CD300-A | CD500-A |
| Rated lifting weight(KG) | 300-600 | 500-1000 |
| Lifting height(M) | 1-50 | 1-100 |
| Lifting speed(m/min) | 7-14 | 7-14 |
| Motor power(kw) | 0.4 | 1.0 |
| Power Supply | Three-phase | Three-phase |
| Voltage(V) | 380 | 380 |
| Electrical duration (JC) | 40% | 40% |
| Organization work level | M4 | M4 |
| Weight(kg) | 40 | 52 |
