Description:

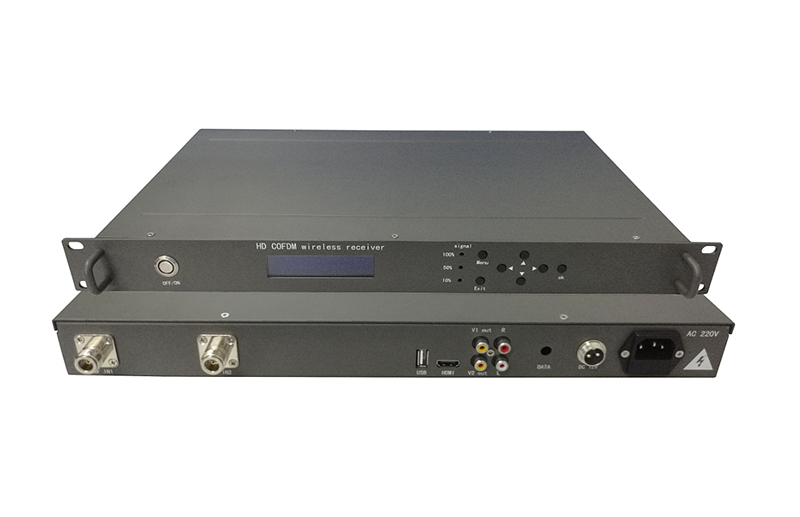

     SF-MR1U800S chassis mobile video receiver is my company's own research and development of digital wireless receiver equipment,works with my company's various models of mobile video transmitter, receives front-end launch of audio and video signals in the back-end real-time display. the device uses a standard machine 1U rack design, can be easily installed in the standard cabinet room. Comes with a display, real-time display front-end transmitter signal strength, comes with adjustment parameters button, receive signal mobile reliable.

Key features:

L 1U rack design

L Simple and efficient control interface

L Receives wireless signals under high speed or non-line-of-sight conditions for remote video transmission and monitoring

L Wireless channel encryption using AES128 bit

Details:

Detail
ReceivingFrequency range	170-860MHz VHF&UHF
Frequency bandwidth	2/4/8MHz,Optional
RF input level	-94dBm~-15dBm(8M bandwidth)/-98dBm~-15dBm(2M bandwidth)
RF Input resistance	50 ohm
RF input connector	N type
Demodulation method	COFDM
Constellation mode	QPSK, 16QAM, 64QAM(Optional)
Forward error correction	1/2,2/3,3/4,5/6,7/8(Optional)
Number of carriers	2k,
Protection interval	1/32,1/16,1/8,1/4(Optional)
Video decoding	MPEG-2MP@ML
Screen aspect ratio	4:3 16:9
Output Interface	HDMI.BNC SD
Video image	1920*1080P@8MHz 720*576@8MHz
Audio output mode	Stereo unbalanced 300/ 200mv
Audio output	2Audio output+2Video output
Operating Voltage	AC220V/DC12V ＜2A
Operating temperature	-20℃～+50℃
Physical  dimension	480*260*45(1U)Chassis
Weight	2.5kg

Application:

Used with my company's models of mobile video transmitter.
