Description:

SF-MR1H800P2 is a self-developed hand-held COFDM mobile video receiver, is a new mobile wireless image receiving system, it can receive wireless high-definition images and sound signals from our company's COFDM series transmitter, built-in battery and display, constitute a set of non-line-of-sight image sound transmission system. the device has high reception sensitivity, suitable for high-speed mobile occasions and non-line-of-sight (NLOS) transmission.

the device uses COFDM quadrature modulation based on the fourth generation mobile communication core technology to make the system have good transmission characteristics. At the same time, due to the use of MPEG-2 image compression and coding technology based on DVD standard, making the receiving image is very clear, real-time and stable. Can achieve real-time recording function and export the contents of the backup. In order to suit the various electromagnetic environments, and avoid external interference.

Key features:

L Light weight, low power consumption, hand-held design

L Strong diffraction ability,long transmission distance, support non-line-of-sight transmission

L Built-in high-performance lithium battery, no additional power supply

L Can stably transmit of images under high-speed mobile and multi-path interference

L Built-in 10.1-inch high-definition display

L Simple and efficient use of control interface, stable power, dynamic power adjustable

L Space diversity reception capability, dual antenna reception, signal stabilization,smooth image

L Wireless channel encryption using AES128 bit

L Supports local storage

L Supports local HD HDMI output

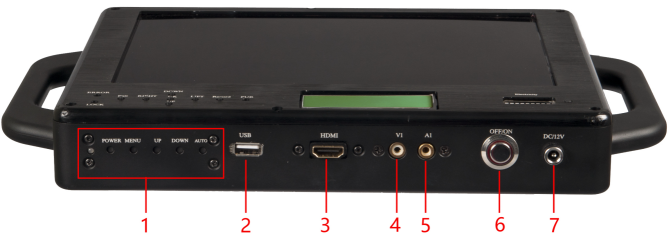

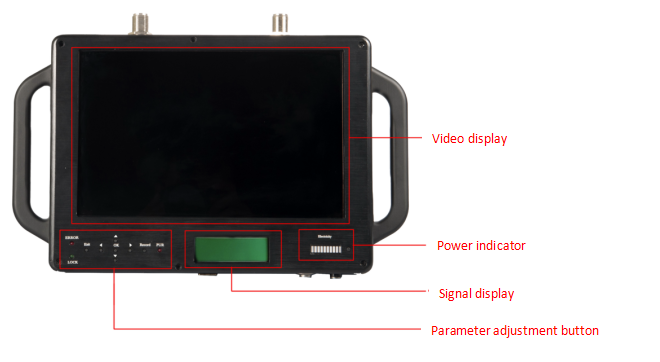

Interface Description:

1. Display parameter adjustment button

2. USB interface, access U and other storage devices, the local storage of video

3. HDMI high definition video output interface

4. SD video output interface

5. SD audio output interface

6. Power switch

7. Power input interface, DC12V input

8. Antenna interface, the interface type is N type, connect the receiver dedicated antenna

9. Antenna interface, the interface type is N type, connect the receiver dedicated antenna

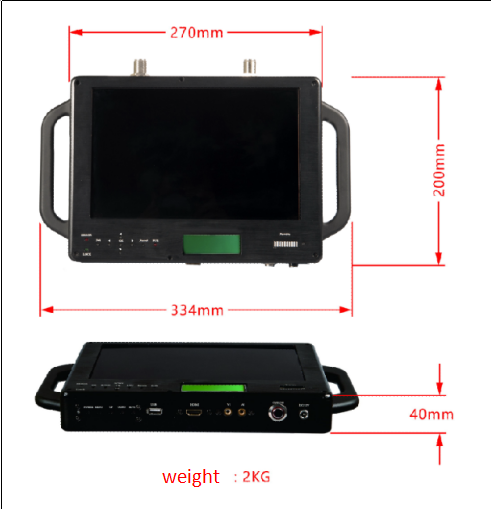

Physical dimension
