| Brand Name: | Trelink |
|---|---|
| Input connector type: | N Female |
| Lightning protection: | DC Ground |
| Gain(dBi): | 3 dBi |
| Frequency range(MHz): | 698-960/1710-2700 MHz |
| Model Number: | TLOD627-3V |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

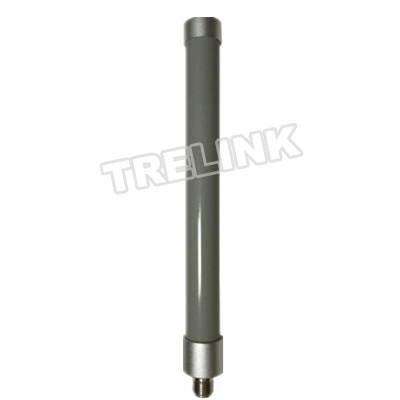

Model:TLOD627-3V
Frequency Range:698-960 /1710-2700 MHz
Gain:3dBi
VSWR:2.0: 1
Polarization:Vertical
Horizontal Beamwidth:360
Vertical Beamwidth:52
Input Impedance:50
Maximum Power:50 W
Lightning Protection:DC GROUND
Connector:N Female
Antenna Dimention:28*280 mm
Weight-kg:0.13kg
Radome Material:UV-PVC
Wind Velocity:210km/h
Working Temperature:-40~+60
Applications:
*698~896MHz, 17002700MHz Wireless System
*LTE System
Advantage:
*Stable perfomance
*Wide band,Frequency coverage for 698-960MHz/1710-2700 MHz bands
*twin heavy-duty mounting brackets and U-Bolts for superior strength
*Strong UV-PVC Radome for all weather operation
*Omni-directional
