| Place of Origin: | China (Mainland) |
|---|---|
| Processing Type: | Multiple Extrusion |
| Hardness: | Rigid |
| Usage: | Packaging Film |
| Type: | PE FILM |
Quick Details
Specifications

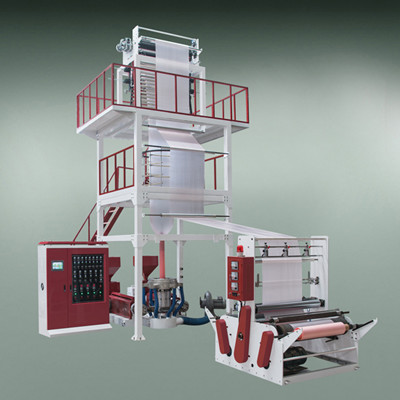

A+B+A three layer co-extrusion film blowing machine enjoys special advantages and can produce both HDPE film and LDPE film.It is improves the physcial toughness of film through multi-layer co-extrusion.with one main extruder providing material for out and inner layer,it reduces one main extruder configuration and achieves energy saving and low consumption.
1. Screw diameter:Φ55mm*2, normal speed, L/D Ratio 28: 1; Material:38CrMoALA
2. Roller width: 550mm
3. Max film width:1100mm
4. Cooling fan for Screw&barrel:3pcs*2(120w)
5. Stainless Steel heating ring, iron cover
6. 146# hard Surface gearbox,made in Hangzhou
7. Die head: (HDPE)Φ120mm(hard Chrome plated),without rotary die
8. Aluminum air ring Φ800,
9. Main motor: 18.5kw*2 ;China brand
10. Inverter: 18.5kw*2;China brand
11. Air blower: 3.7KW,China brand
12. Temperature controller:China brand
13. Contactor & buttons in electric box:China brand
14. up-traction motor:1.1kw with frequency Conversion control
15. 4pcs up-traction roller by pneumatic Control(include embossing roller)
16. Double winderswith air shaft 4 pcs,with knife
17. Surface Friction type, rubber Rewinding Φ300
18. Motor for winder:1.1kw, control by inverter
19. Max output:70kg/h
20. Machine height:5800mm
21. Gusset arm: wooden
22. No lift up and down
23. Machine color: white and red, white gearbox
