| Model Number: | SF-2450XD |
|---|---|
| Brand Name: | SF-Tech |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

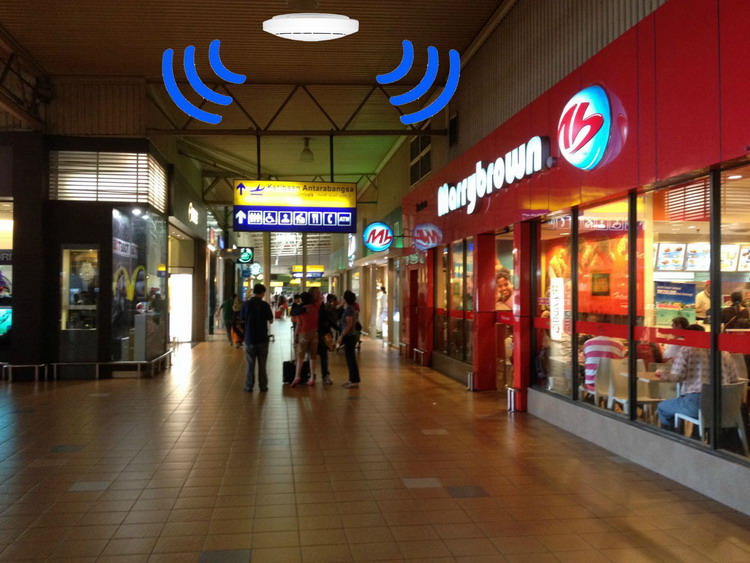

SF-2450XD series is an indoor wireless WiFi coverage equipment of high performance and high stability.the two 802.11n MIMO 3*3 radio frequency can work at the same time at at 2.4 and 5 GHZ frequencies of high-performance dual-band wireless access points.the equipment has device with built-in qualcomm Atheros AR9558CPU (700 MHZ),it guarantees the faster connection of the access point,meets the stringent requirements of higher capacity (450 MBPS wireless rate).The equipment supports the 802.3at Ethernet power supply standard,can realize fast installation trough POE switches.It's widely used in hotels,factories,schools,stations and other places.
the operating system of SF-2450XD is a Multi-function, ease of use system,to ensure the full range of hardware devices in the network deployment time can easily complete the configuration.
Key features:
L New GUI design based on the technology of HTML 5
L 256 accessed clients
L 16 virtual network (SSID+VLAN)
L IPV6 available
L WNMS compatible
Details:
WIreless | |
WLAN standard |
IEEE 802.11 a/b/g/n |
TRansmission mode |
MIMO3x3 |
Wireless spectrum |
2.402 - 2.484 GHz (Varies from area to area) FCC 2.412 - 2.462 GHz (CH1-CH11) 5.170 - 5.875 GHz (Varies from area to area) FCC 5.745 - 5.825 GHz (CH149-CH161) |
Transmission power |
2.4 GHz: 20 dBm 5 GHz: 20 dBm |
CHannel bandwidth |
20, 40 MHz |
Modulation Type |
802.11 a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 b: DSS (CCK, DQPSK, DBPSK) |
DataRate |
802.11 n @ 40 MHz: 450, 405, 360, 270, 180, 135, 90, 45 Mbps 802.11 a/g @ 20 MHz: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11 b @ 20 MHz: 11, 5.5, 2, 1 Mbps |
Wireless Security |
WPA/WPA2Personal message encryption & storage-to-delive, WPA/WPA2 abylon READER, WACL |
Duplex Mode |
TDD |
Antenna | |
Type |
6xBuilt-in omnidirectional antennas |
Gain |
2.4 GHz: 3 dBi 5 GHz: 3 dBi |
EXplosion radius |
100m |
Port | |
Port |
10/100/1000 Base-T, RJ45 |
Network | |
Operating mode |
Bridge |
IPv4 Management |
Static,DYnamic |
IPv6 Management |
Static,DYnamic |
DoubleIPv4 |
Available |
VLAN |
802.1Q |
VIrtual SSID |
Eight available under single frequency |
USer isolation |
Available |
Service | |
Service |
SNMPService, NTPClient, WNMSClient |
Physical property | |
Size |
180 mm (Length)×180 mm (width)×45 mm ( Height) |
Weight |
450 g |
Mount |
Ceiling,Wall-hanging |
Power | |
Equipment |
802.3at passive48V POE; 12V DC input |
Power Supply |
100–240V AC turn48V DC PoE power |
Power Dssipation |
8 W |
Environment | |
Temperature |
-10°C ~ +55°C |
Humidity |
0 ~ 90 % (Non-condensing) |
Management | |
System Monitoring |
SNMP v1/2c/3Service,Logs,Send the alarm via email and SNMP traps |
Regulation | |
Certification |
Meet the criterionFCC/IC/CE |
