| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE/ISO |
| Weight: | 1.5T |
| Dimension(L*W*H): | 5.0*2.0*4.0 |
| Power(W): | 11kw |
| Voltage: | 380v 50hz |
| Model Number: | RF-B50/55/60/65 |
| Brand Name: | fashion |
| Place of Origin: | China (Mainland) |
| Automatic: | Yes |
| Blow Moulding Type: | pe |
| Application: | Film |
| Condition: | New |
Quick Details
Specifications

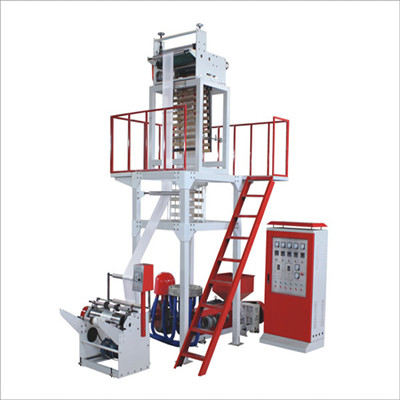

RF-B50/55/60/65 HDPE/LDPE film blowing machine
Model |
RF-B50 |
RF-B55 |
RF-B60 |
RF-B65 |
Suitable Materials |
HDPE LDPE | |||
Film Width(mm) |
200-600 |
300-800 |
400-1000 |
600-1200 |
Film Thickness(mm) |
0.009-0.10 |
0.009-0.10 |
0.009-0.10 |
0.01-0.10 |
Max.Extrusion Output(kg/hr) |
40kg/hr |
50kg/hr |
60kg/hr |
80kg/hr |
EXTRUDER | ||||
Screw Diameter(mm) |
Φ50 |
Φ55 |
Φ60 |
Φ65 |
Screw L/D Ratio |
28:1 |
28:1 |
28:1 |
28:1 |
Screw Material |
SACM-645/38 CRMOALA | |||
Cylinder Material |
SACM-645/38 CRMOALA | |||
Cylinder Cooling |
180w |
180w |
250w |
250w |
Driving Motor(kw) |
11kw |
15kw |
18.5kw |
22kw |
Temperature Control |
3 |
3 |
3 |
4 |
Average Power-consume(kw) |
15 |
18 |
26 |
30 |
TYPE of DIE | ||||
Die Size(mm) |
Φ60/80 |
Φ80/100 |
Φ100/150 |
Φ120/200 |
Temperature Control |
3 |
3 |
3 |
3 |
Air Ring |
1 |
1 |
1 |
1 |
Air Blower(kw) |
2.2 |
2.2 |
3 |
4 |
Center Steady Stick |
2(HDPE) | |||
TAKE-up UNIT | ||||
Roller Width |
Φ165*650 |
Φ165*850 |
Φ165*1100 |
Φ165*1300 |
Height Adjustable type |
700mm |
700mm |
700mm |
700mm |
Take-up Speed(m/min) |
10-80 |
10-80 |
10-80 |
10-70 |
Take-up Motor(kw) |
1.1 |
1.1 |
1.1 |
1.5 |
WINDING UNIT | ||||
Type |
SURFACE FRICTION TYPE | |||
Winding Motor(kw) |
6N.M |
10N.M |
10N.M |
16N.M |
Winding Speed(m/min) |
10-80 |
10-80 |
10-80 |
10-70 |
Overall Diemension(L*W*H) |
5.0*2.0*4.5m |
5.2*2.2*5.0m |
5.5*2.5*5.5m |
5.8*2.8*6.5m |
