Scope

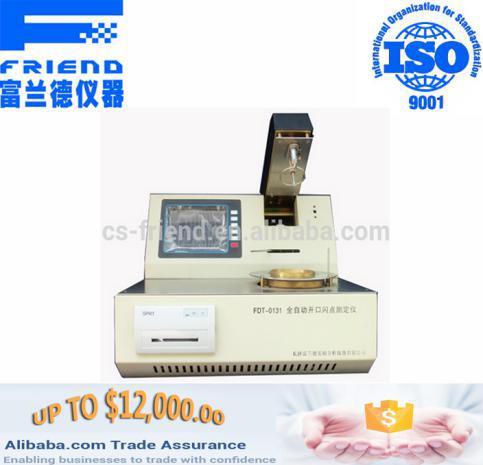

Automatic opening flash point tester is based on ASTM D92, GB / T3536 standard "of petroleum products of flash and fire assay (Cleveland open cup method)" provides design and manufacture. Using liquid crystal screen full English human-machine interface, automatic movements, menu-guided input, advanced technology, simple operation, high technology, it is the ideal alternative products imported products.

Features

1, large-screen LCD, with full English operating software prompts;

2, with a test date, test time and other parameters are prompted;

3, automatically correct atmospheric pressure and calculate the correction value;

4, innovative introduction of imported XECOM US data processing chip, fast and accurate data processing;

5, automatic heating, automatic sweeping fire, automatic discrimination results automatically print the results;

6, automatically cut off the end of the experiment originated, to protect the safety of the laboratory;

7, circuit safety measures adopted Friend designed to avoid affecting current or voltage changes caused by the instrument;

Technical Parameters

1 Power supply: AC 220V±10%, 50Hz

2, range: room temperature ~ 400℃;

3. Repeatability:≤4℃

4, reproducibility:≤6℃

5, the resolution of: 0.1℃

6, heating rate: in line with standard;

7, Ignition: electronic ignition, gas flame.

8, to adapt to the ambient temperature: 10-40℃

9, to adapt to the environment humidity: <85%

Total power consumption: less than 400W
