Electrical Parameters

Hall type

Power supply voltage

5±0.5VDC

the power consumption of current

6.5 mA/each hall chip

Resolution

 Infiniti

Maximum voltage

15 VDC continuous

Reverse polarity maximum voltage

14.5VDC

Load resistance

5KΩ

the median voltage (no-load)

48～52%Vs

Potentiometer

Power supply voltage

DC24V

Power supply current

<20mA

Resolution

 Infiniti

Resistance (10%)

 2KΩ,5KΩ, 10KΩ

Electrical rotation

±32°

Output voltage range (Relative voltage)

0～100%;10～90%

Maximum voltage

48%～52%

Potentiometer maximum load of voltage

32VDC

Maximum power consumption (25℃)

0.25W

the direction of the switch

Switch position ±3°

Product Configuration

No.

Project

Content

1

Industrial

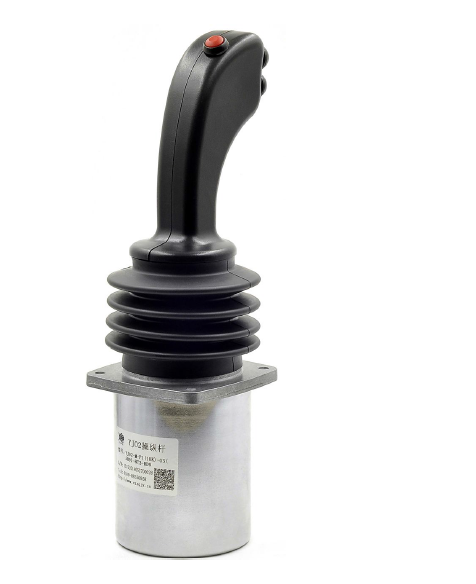

SJ02 Industrial Joystick

2

Operation Direction

M-friction T-automatic spring return MS-friction with self lock TS-Spring return with self lock

3

Operation Direction

4

Electrical Output Form

Table SJ02-1

Hall Output

HV1:DC5V 0-2.5-5V

HV2:DC5V 0.5-2.5-4.5V

HV3:DC5V 1.0-2.5-4.0V

HV4:DC5V 1.25-2.5-3.75V

Potentiometer Output

P1:Ordinary two directions output

P2:Ordinary single direction output

V1:DC24V-10V~0~+10V voltage output

V2:DC24V+10V~0~+10V voltage output

V3:DC24V-5V~0~+5V voltage output

V4:DC24V+5V~0~+5V voltage output

V5:DC24V 0~+10V voltage output

V6:DC24V 0~+5V voltage output

I1:4 wire4mA~12mA~20mA current output

I2:4 wire20mA~4mA~20mA current output

5

Potentiometer Type

1K,2K,5K,10K,20K,H-Hall

6

Quantity of Switch

Quantity of Switch Signal 01, 02 and 03. Refer to appendix 4-3 of conventional closed form

7

Common Closed Position

8

Handle Type

Refer to appendix 1-1~1-12

9

Mounting dimensions

Refer to appendix 3-1

10

Remark

Line with, special instructions, do not need not.
